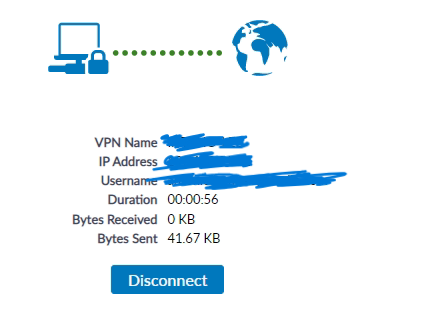

VPN IPSEC bytes received 0

[INT1]

it happened after a windows update i think im not sure about it i tried unistalling the updates but its still not working what can be the issue?

[sjoshi]

Hi,

What is the forticlient version.

Can you try reinstalling the FCT

[INT1]

hello,

its the latest version 7.4.1, i unistalled it and installed back again didnt work

[sjoshi]

Is this also affecting your traffic flow via the ssl vpn

[INT1]

its only happening on IPSEC VPN, i tried ssl vpn its working normally

[sjoshi]

can you collect ike debug while connecting the VPN.

diagnose debug console timestamp enable
diagnose vpn ike log-filter dst-addr4 10.10.100.109 ---> 10.10.100.109 is the remote gateway
diagnose debug application ike -1
diagnose debug application fnbamd -1
diagnose debug enable

Note: Starting from FortiOS 7.4.1, the 'diagnose vpn ike log-filter dst-addr4' command has been changed to 'diagnose vpn ike log filter rem-addr4'.

diagnose vpn ike log filter rem-addr4 10.10.100.109
diagnose debug application ike -1
diagnose debug application fnbamd -1
diagnose debug console timestamp enable
diagnose debug enable

diagnose debug disable

[INT1]

im not getting anything useful from it

[sjoshi]

can you let me know what was the recent windows update?

Is it KB2693643?

[INT1]

no i checked and it was't installed on the machine, also i tried to uninstall the latest updates of windows and it still didn't work. what happened is it was working properly up untill 13/11/24 thats the last time that the client used it so i tried to unistall every update from 13 till now.

[sjoshi]

Can you confirm one thing if NAT-T is enable on the Forticlient configuration.

Open your forticlient and see the Phase1 settings
