Support Forum
The Forums are a place to find answers on a range of Fortinet products from peers and product experts.
torrgovin
New Contributor II

TCP port 444 blocked

Hi,



I am not able to get throught tcp port 444 despite I allowed this port on my fortigate 100F.



Do you know why ?

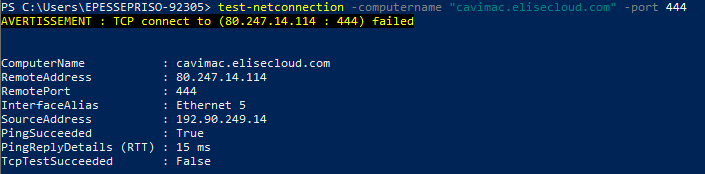

testport444failed.jpgtcp444 failed.png



Thank you for your help.

3 Solutions
Dongkwan
Staff
Staff

Hello,

The flow debug would be useful for issue troubleshooting. Please check the CLI commands as below.



diagnose debug flow trace stop
diagnose debug enable
diagnose debug flow filter addr x.x.x.x
diagnose debug flow show function-name enable
diagnose debug flow trace start 100



*. Debugging the packet flow

https://docs.fortinet.com/document/fortigate/6.2.15/cookbook/54688/debugging-the-packet-flow

Kwan

View solution in original post

Dongkwan

Hello,



I did not find any sessions connected to port 444 through debug file.

Please capture the packets for 80.247.14.114 from port1.
If no packets are captured related to 444 port, then the packet did not routed to the firewall.



*. Performing a sniffer trace or packet capture
https://docs.fortinet.com/document/fortigate/7.0.12/administration-guide/680228/performing-a-sniffer...



Kwan

View solution in original post

torrgovin
New Contributor II

IT IS OK :D Thank you KWAN !



So I create this rule but I didn't put it up to the policy 76 which was "reject all". So now, everything is working :D

But I still don't understand why for some computers it was working and for other, not.


View solution in original post

8 REPLIES 8
Christian_89
Contributor III

Hey

Is there a policy in place?

torrgovin

Hey Christian, Thank you for your reply.

Are you French ?



I just arrived in the company, and I try to check if there was a policy but everything seems to be ok...

I also added this policy, but still not working.



elisecloud notok.PNG

Dongkwan
Staff
Staff

Hello,

The flow debug would be useful for issue troubleshooting. Please check the CLI commands as below.



diagnose debug flow trace stop
diagnose debug enable
diagnose debug flow filter addr x.x.x.x
diagnose debug flow show function-name enable
diagnose debug flow trace start 100



*. Debugging the packet flow

https://docs.fortinet.com/document/fortigate/6.2.15/cookbook/54688/debugging-the-packet-flow

Kwan
torrgovin
New Contributor II

Hi Dongkwan !



Thank you for your help :)







Please find below the diagnose report. Do you see something wrong ?







I cannot put the diagnose report here because its exceed 20 000 characters, so I uploaded it here : https://www.transferxl.com/download/08jLzHZnRHNB5

Dongkwan

Hello,



I did not find any sessions connected to port 444 through debug file.

Please capture the packets for 80.247.14.114 from port1.
If no packets are captured related to 444 port, then the packet did not routed to the firewall.



*. Performing a sniffer trace or packet capture
https://docs.fortinet.com/document/fortigate/7.0.12/administration-guide/680228/performing-a-sniffer...



Kwan
torrgovin
New Contributor II

Hi Kwan,



Sorry my session was not active during the diagnose. Please find the new log where we can see the 444 session.



https://www.transferxl.com/download/08jpbxjBtN2G7X



So I made a session from a working computer 192.90.249.54 and from 192.90.249.14 which was denied by policy 76. Its seem that there is a policy called 76 who is blocking the session right ? "Denied by forward policy check (policy 76)" Is that the problem ?



I checked in Dashboard > Policy : But I can't find any policy with number 76.. Where else can I check ?





torrgovin
New Contributor II

IT IS OK :D Thank you KWAN !



So I create this rule but I didn't put it up to the policy 76 which was "reject all". So now, everything is working :D

But I still don't understand why for some computers it was working and for other, not.


torrgovin
New Contributor II

Ok I saw that some computers was allowed by Policy 68, and my computer was allowed in Policy 68. That is why it was working for me :) Thank a lot !!!
