PORTS

[FortiSpain]

Good morning,

We have a FortiGate 50G installed at home. The device has been set by the company who sold it to us. The FortiGate is used over 2 routers from 2 different providers. We have asked the company to close all the ports as the use of internet here is domestic. When using nmap in order to check possible open ports, the results are:

113/tcp  closed ident

2000/tcp open   cisco-sccp

5060/tcp open   sip

I have used the WAN IP of the Forti as target. Maybe I am doing it wrongly... Here there is the Firewall Policy:

The company told us that the ports are closed but here at home we are a little bit worried. Please, could you confirm that the policies are correct in order to close all the ports? If positive, how is it possible that nmap shows open ports (I have done the process 4 or 5 times)?

We are not professional here and our goal is to be completely protected only.

Thank you very much.

[FortiSpain]

It is very late here... in the article about port 113, I go to network >> interfaces then click "edit" on one of them. I can press the "Edit in CLI" button, I write "edit" + the name of the interface, then the rest of the command but the system says "unknown action"... I am tired. I will try again tomorrow.

Have a good night

[FortiSpain]

Good afternoon Manoj,

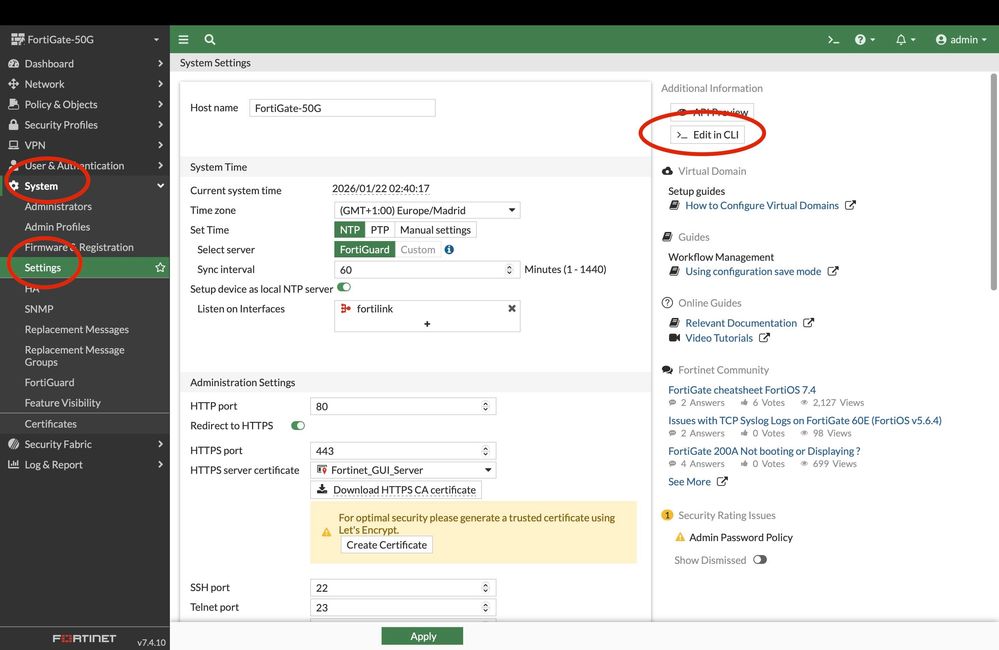

I went to system settings because the title of the command is "config system settings"... So I followed the following:

My confusion comes from the fact that the word "CLI" does not appear on the top right of the screen... Now, I have found it. I have applied the commands of the articles you sent and these are the nmap results:

PORT     STATE    SERVICE

113/tcp closed ident

2000/tcp filtered cisco-sccp

5060/tcp filtered sip

Are these results right?

Thank you for confirming.

[FortiSpain]

Hi Manoj,

This is my second reply of today. i have run the following command on nmap:

sudo nmap -sS --top-ports 3000 -T4 -n

I can connect to the firewall through 2 different IPs (one for each router).

Results (Router A):

Not shown: 2996 filtered tcp ports (no-response)

PORT    STATE  SERVICE

22/tcp  open   ssh

80/tcp  open   http

113/tcp closed ident

443/tcp open   https

Results (Router B):

Not shown: 3000 filtered tcp ports (no-response)

I would like to close the open ports. Could you be so kind as to let me know the steps I have to follow?

Thank you

[mpapisetty]

The open ports are enabled under the interface. For Router A connected interface, just disable the admin access ports. Here is the reference - https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-configure-administrative-access-on-...

[FortiSpain]

Thank you... But once done, the access to the Firewall is not possible. What do you recommend?

[mpapisetty]

Haha. I hope I am not being made fun of here. We open ports to access the firewall, but I thought you wanted to close the ports. And hence I showed you the path.

Do you want the ports open or closed? And if you have a detailed end state in mind, I could help better.

[FortiSpain]

I have closed port 22. I will leave 80 and 443 open. If I need to connect to the firewall via ssh, I will open it again.

After running nmap searching for vulnerabilities, I have found this:

443/tcp open  ssl/https

|_http-vuln-cve2017-1001000: ERROR: Script execution failed (use -d to debug)

|_http-majordomo2-dir-traversal: ERROR: Script execution failed (use -d to debug)

|_http-stored-xss: Couldn't find any stored XSS vulnerabilities.

|_http-csrf: Couldn't find any CSRF vulnerabilities.

| fingerprint-strings:

|   GetRequest:

|     HTTP/1.1 200 OK

|     Content-Encoding: gzip

|     Content-Type: text/html

|     ETag: c7ydcg56t6G85Nd83bgn9qsQgrgcq749

|     X-Frame-Options: SAMEORIGIN

|     Content-Security-Policy: frame-ancestors 'self'

|     X-XSS-Protection: 1; mode=block

|     Strict-Transport-Security: max-age=63072000

|     Date: Fri, 23 Jan 2026 00:36:45 GMT

|     Connection: close

|     _Ij2~

|     ]lXl

|     ?VC%

|     #PJ*

|     Ef8?

|     nNMZ

|_    ."!eb

| http-method-tamper:

|   VULNERABLE:

|   Authentication bypass by HTTP verb tampering

|     State: VULNERABLE (Exploitable)

|       This web server contains password protected resources vulnerable to authentication bypass

|       vulnerabilities via HTTP verb tampering. This is often found in web servers that only limit access to the

|        common HTTP methods and in misconfigured .htaccess files.

Do I have to be worried?

On the other hand, I have downloaded the Fortinet Certificate which has been installed on the Keychain of my computer (log in section). It is valued as "non trustable" (sorry for my poor translation...). Do I have to change this to "trustable"?

My goal is to be as protected as possible... But being able to enter in the firewall interface at least.

Thanks again

[AEK]

Leaving admin ports open on WAN interface is a very bad idea for security.

Leave them open only on LAN interface. In case you need to administer your equipment from WAN then better to do it through VPN or PAM.

[AEK]

"I use occasionally a phone plugged to the router"

That explains why SIP and SCCP are listening.

If you want to protect them with the FortiGate you will need to change your design to bring your VoIP behind the firewall instead of leaving it at front-end router level.

Meanwhile you should keep everything patched (router, phone, FGT) to avoid known vulnerabilities, and you may also work with a pentester to check if there are some exploitable breaches.

[FortiSpain]

Hi AEK and thank you very much for your time.

If you want to protect them with the FortiGate you will need to change your design to bring your VoIP behind the firewall instead of leaving it at front-end router level.

That sounds very well. I asked the company who installed the firewall to do it but they say that they are not able to make it.

Could you be so kind as to let me know the steps in order to bring my VoIP behind the firewall? It is really important for us.

Thank you.

---
