Load Balancing and Sessions

Hi I have 3 web servers behind a Fortigate 300A high availability pair. I am employing the server load balancing with port forwarding. My concern is that these web sites host e-commerce sites. Therefore I can not have a visitor get " balanced" from one server to another. It is very important that visitors always remain connected to the same server for the duration of their session. what if any specific settings need to be employed to get the firewalls to make sure they don' t reallocate a visitor from one server to another? Is there a " sticky IP" setting or something along those lines?
(2) FortiGate 300A (clustered) 4.2.9 (1) Fortigate 310B 4.2.9 (1) Fortianalyzer 100C 4.2.4
(2) FortiGate 300A (clustered) 4.2.9 (1) Fortigate 310B 4.2.9 (1) Fortianalyzer 100C 4.2.4
1607
0 Kudos
5 REPLIES 5
Carl_Wallmark
Valued Contributor

Created on ‎04-29-2011 09:03 AM

Take a look at " persistence" under virtual server at the load balance

FCNSA, FCNSP
---
FortiGate 200A/B, 224B, 110C, 100A/D, 80C/CM/Voice, 60B/C/CX/D, 50B, 40C, 30B
FortiAnalyzer 100B, 100C
FortiMail 100,100C
FortiManager VM
FortiAuthenticator VM
FortiToken
FortiAP 220B/221B, 11C

FCNSA, FCNSP---FortiGate 200A/B, 224B, 110C, 100A/D, 80C/CM/Voice, 60B/C/CX/D, 50B, 40C, 30BFortiAnalyzer 100B, 100CFortiMail 100,100CFortiManager VMFortiAuthenticator VMFortiTokenFortiAP 220B/221B, 11C
1172
0 Kudos
zack
New Contributor
In response to Carl_Wallmark

Created on ‎04-29-2011 10:24 AM

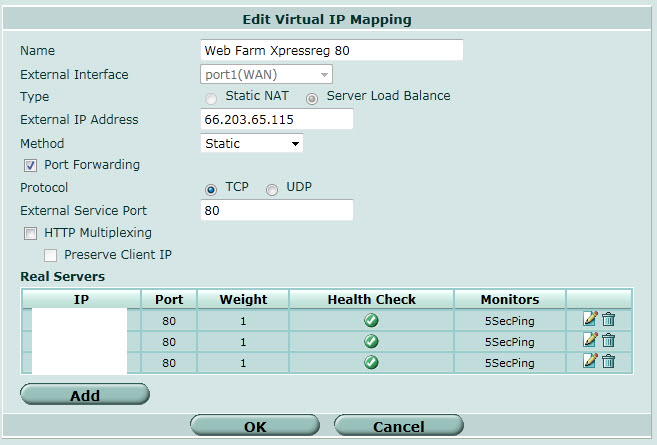

i' m sorry. i don;t seem to have that option...
(2) FortiGate 300A (clustered) 4.2.9 (1) Fortigate 310B 4.2.9 (1) Fortianalyzer 100C 4.2.4
(2) FortiGate 300A (clustered) 4.2.9 (1) Fortigate 310B 4.2.9 (1) Fortianalyzer 100C 4.2.4
Preview file
68 KB
1172
0 Kudos
Carl_Wallmark
Valued Contributor

Created on ‎04-29-2011 11:52 AM

Oh, what firmware are you on ?

FCNSA, FCNSP
---
FortiGate 200A/B, 224B, 110C, 100A/D, 80C/CM/Voice, 60B/C/CX/D, 50B, 40C, 30B
FortiAnalyzer 100B, 100C
FortiMail 100,100C
FortiManager VM
FortiAuthenticator VM
FortiToken
FortiAP 220B/221B, 11C

FCNSA, FCNSP---FortiGate 200A/B, 224B, 110C, 100A/D, 80C/CM/Voice, 60B/C/CX/D, 50B, 40C, 30BFortiAnalyzer 100B, 100CFortiMail 100,100CFortiManager VMFortiAuthenticator VMFortiTokenFortiAP 220B/221B, 11C
1172
0 Kudos
zack
New Contributor
In response to Carl_Wallmark

Created on ‎04-29-2011 11:58 AM

Version 3 MR 6
(2) FortiGate 300A (clustered) 4.2.9 (1) Fortigate 310B 4.2.9 (1) Fortianalyzer 100C 4.2.4
(2) FortiGate 300A (clustered) 4.2.9 (1) Fortigate 310B 4.2.9 (1) Fortianalyzer 100C 4.2.4
1172
0 Kudos
Carl_Wallmark
Valued Contributor

Created on ‎04-29-2011 01:37 PM

Ah, if you upgrade to say 4.1.9 or 4.2.6 you will get a more advanced load balance features, But read the manual before at docs.fortinet.com

FCNSA, FCNSP
---
FortiGate 200A/B, 224B, 110C, 100A/D, 80C/CM/Voice, 60B/C/CX/D, 50B, 40C, 30B
FortiAnalyzer 100B, 100C
FortiMail 100,100C
FortiManager VM
FortiAuthenticator VM
FortiToken
FortiAP 220B/221B, 11C

FCNSA, FCNSP---FortiGate 200A/B, 224B, 110C, 100A/D, 80C/CM/Voice, 60B/C/CX/D, 50B, 40C, 30BFortiAnalyzer 100B, 100CFortiMail 100,100CFortiManager VMFortiAuthenticator VMFortiTokenFortiAP 220B/221B, 11C
1172
0 Kudos
