Load Balance on Fortigate

[MustphaBassim]

Hello Deras

i am setup Virvual server on Fortgate fireall 201F to working on round robin methood but it seems that it is not doing load balance the session is kpet on one server rather than the others

any feedback ?

Bests

[ozkanaltas]

Hello @MustphaBassim ,

When I reviewed your configuration I saw the first server (172.16.1.3) is in disabled status. Can you change the status from disabled to active?

[MustphaBassim]

Hello Dear

i tried to disable / enable but still stuck on the same servers

Best Regards

[ozkanaltas]

Hello @MustphaBassim ,

Can you check the server health check status? Maybe the server doesn't give a response to the health check package.

On the dashboard menu, click the + (plus) icon. After that search load balance monitor and check the server status on that page.

[MustphaBassim]

they are up and running but still the same issue

[ozkanaltas]

Hello @MustphaBassim ,

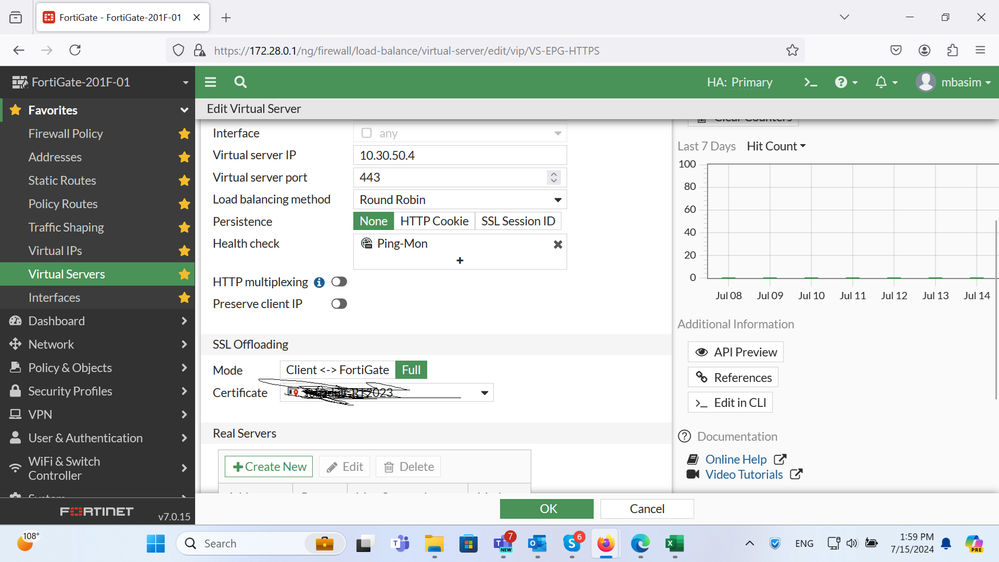

When I reviewed the screenshot you sent. In my opinion, Fortigate It seems to distribute sessions properly. Because while there are 5 sessions on one server, there are 8 on the other. This seems normal for a little traffic.

[MustphaBassim]

Yes i am seeing that also but on the web it only show us one server of them not the UI of the other one

[ozkanaltas]

Hello @MustphaBassim ,

Fortigate may be doing session persistence. Can you try accessing with a different IP and a different browser?
