LDAP cert Configuration error



Hello,



I'm trying to setup an ldaps srv on my fortigate 50E (6.2.17) and it works with the ip without cert and i can save but i would like it to work with a cert


when i try with the fqdn, i can't save and shows invalid hostname (i can ping the fqdn from the fw) even if the connectivity test works and i can browse the distinguised name

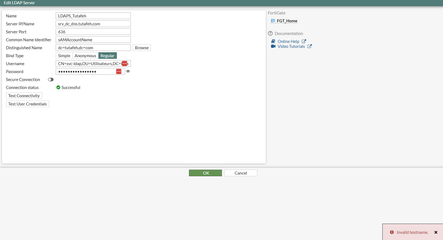

then when i try to enable the secure connection and add the CA cert (with the fqdn as the cn), the connectivity test still works, i can still browse the distinguished name but when i try to validate, it disable the secure connexion with the cert and i get an invalid hostname error




even if i can ping this hostname and browse the dn and everything...



Does someone knows why it could do that ?



Best Regards

John













1 Solution
Markus_M

Possible to get rid of the underscores _ ?
https://datatracker.ietf.org/doc/html/rfc1035#section-2.3.1

The labels must follow the rules for ARPANET host names.  They must
start with a letter, end with a letter or digit, and have as interior
characters only letters, digits, and hyphen.  There are also some
restrictions on the length.

You may be able to work around it, depending on your server certificate, with creating a DNS database entry on FortiGate for something similar to srvdcdns.tutafeh.com against that IP, and use that as FQDN in your LDAP server setting. The FQDN must match the server certificate.

- Markus

View solution in original post

9 REPLIES 9
AEK
SuperUser
SuperUser

Hi John

Can you try set the hostname from CLI?

config user ldap
edit LDAPS_Tutafeh
set server "srv_dc_dns.tutafeh.com"
end
end



AEK
AEK
JohnSmith33

Hello AEK,



I tried but got this error


ozkanaltas
Valued Contributor III

Hello @JohnSmith33 ,



Can you try removing the quotation marks?



set server srv_dc_dns.tutafeh.com
If you have found a solution, please like and accept it to make it easily accessible to others.
NSE 4-5-6-7 OT Sec - ENT FW
If you have found a solution, please like and accept it to make it easily accessible to others.NSE 4-5-6-7 OT Sec - ENT FW
JohnSmith33

Hello @ozkanaltas

the problem stays the same

Markus_M

Possible to get rid of the underscores _ ?
https://datatracker.ietf.org/doc/html/rfc1035#section-2.3.1

The labels must follow the rules for ARPANET host names.  They must
start with a letter, end with a letter or digit, and have as interior
characters only letters, digits, and hyphen.  There are also some
restrictions on the length.

You may be able to work around it, depending on your server certificate, with creating a DNS database entry on FortiGate for something similar to srvdcdns.tutafeh.com against that IP, and use that as FQDN in your LDAP server setting. The FQDN must match the server certificate.

- Markus
AEK

Markus is right.

I just tried with underscore in the hostname and it shows the same error.

AEK
AEK
JohnSmith33
New Contributor

Hello guys,

thanks for the answers, I could only try without underscore this morning and i can now save, well it works without a certificate with the entry dns but not with the certificate even if i renewed it with the new name.

I think I'm gonna redeploy everything so i don't need the dns entry and I won't ever put underscore in my dc srv name x)

Anyway thanks for the solution about the underscore.

AEK

Keep in mind 6.x is old version and certificate was not mandatory.

Starting from 7.4.4 the trusted certificate is required.

AEK
AEK
Markus_M
Staff & Editor
Staff & Editor

Context: https://community.fortinet.com/t5/FortiGate/Technical-Tip-LDAPS-STARTTLS-certificate-issuer-enforcem...

so plan for the certificate check.

Please mark the forum post as solved, that others may consider looking at it, when searching for the same problem. (saw you did that already)

- Markus
