Hi team,
We have to configure policy router for internet traffic in fortinet firewall 100D. Pls suggest on this. Internet traffic port 53 or HTTP.
Nominating a forum post submits a request to create a new Knowledge Article based on the forum post topic. Please ensure your nomination includes a solution within the reply.
Hello,
Could you please elaborate whether you are referring to policy route or firewall policy?
Hi Team,
As per your query please follow the below steps:
1. Click on system >> feature visibility and enable advanced routing
2. Under network >> policy routes, click on Add new

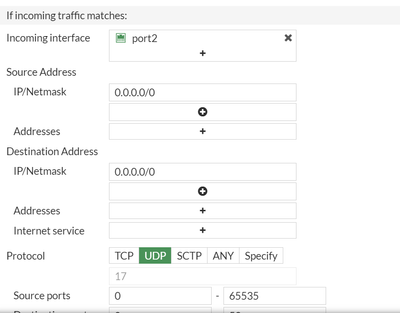

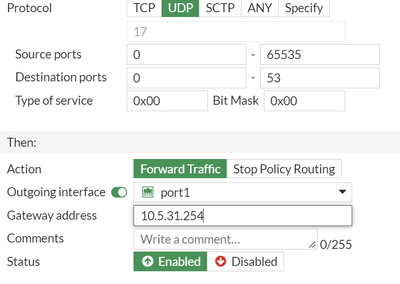

DNS policy route:
Incoming interface: LAN interface
Source: 0.0.0.0/0
Destination:0.0.0.0/0
Protocol: UDP
Destination port:53
Outgoing interface: WAN Interface
Outgoing gateway: Select WAN gateway
You can refer to below screenshots for the same:

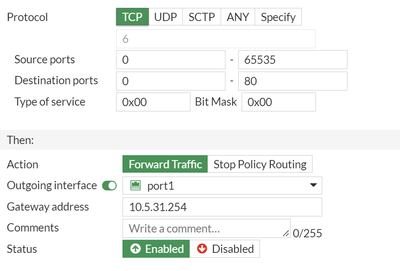

Policy route for HTTP traffic:
Incoming interface: LAN interface
Source: 0.0.0.0/0
Destination:0.0.0.0/0
Protocol: TCP
Destination port:80
Outgoing interface: WAN Interface
Outgoing gateway: Select WAN gateway
You can refer to below screenshots for the same:
Policy route for HTTPS traffic:
Policy route for HTTP traffic:
Incoming interface: LAN interface
Source: 0.0.0.0/0
Destination:0.0.0.0/0
Protocol: TCP
Destination port:443
Outgoing interface: WAN Interface
Outgoing gateway: Select WAN gateway
You can refer to below screenshots for the same:
Please check and keep us posted
