Created on 04-25-2022 05:09 PM
Can someone please help me get IPv6 configured?
I'm on Xfinity and previously had OpenWRT configured with ::/60 prefix but having difficult time with 80F running 7.2.0 getting IPv6 address

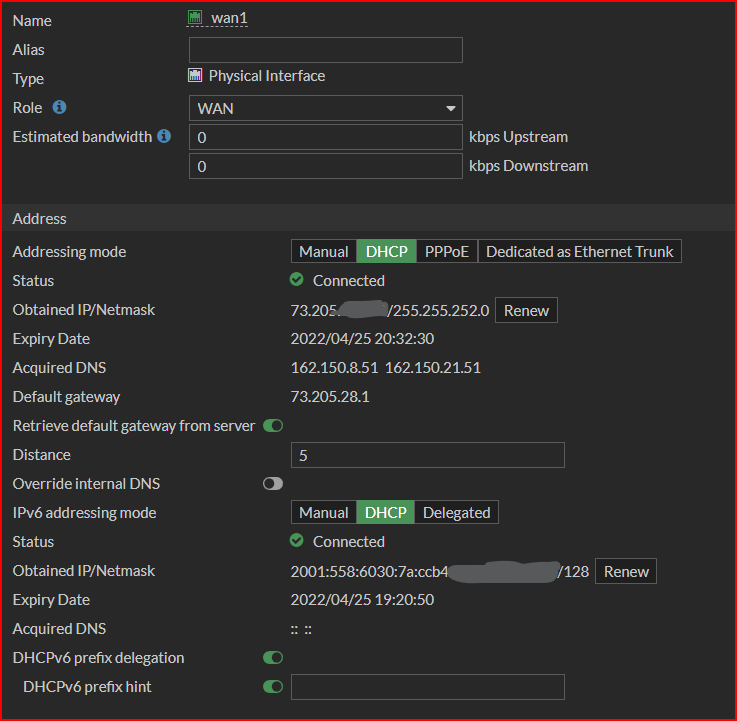

No matter what I do, the GUI does not record DHCPv6 prefix hint.
What am I missing?
config system interface
edit "wan1"
set vdom "root"
set mode dhcp
set allowaccess https
set ident-accept enable
set type physical
set role wan
set snmp-index 1
config ipv6
set ip6-mode dhcp
set dhcp6-prefix-delegation enable
set ip6-dns-server-override disable
config dhcp6-iapd-list
edit 5
set prefix-hint ::/56
next
end
end
set dns-server-override disable
next
end
(ipv6) # get
ip6-mode : dhcp
nd-mode : basic
ip6-address : 2001:558:6030:7a:ccb4:xxxx:xxxx:xxxx/128
ip6-allowaccess :
icmp6-send-redirect : enable
ra-send-mtu : enable
ip6-reachable-time : 0
ip6-retrans-time : 0
ip6-hop-limit : 0
dhcp6-prefix-delegation: enable
delegated-prefix iaid 5 : 2601:586:c400:5240::/60
preferred-life-time : 5850
valid-life-time : 5850
delegated-DNS1 : ::
delegated-DNS2 : ::
delegated-domain :
cli-conn6-status : 2
vrrp-virtual-mac6 : disable
vrip6_link_local : ::
ip6-dns-server-override: disable
Acquired DNS1 : ::
Acquired DNS2 : ::
dhcp6-iapd-list:
== [ 5 ]
iaid: 5 prefix-hint: ::/56 prefix-hint-plt: 604800 prefix-hint-vlt: 2592000
Solved! Go to Solution.
Nominating a forum post submits a request to create a new Knowledge Article based on the forum post topic. Please ensure your nomination includes a solution within the reply.
Hi FortiForum,
I found this document:
Could you tell me if it helped?
If not, we will find another solution to your answer.
Regards,
Hello FortiForum,
Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.
Thanks,
Hi FortiForum,
I found this document:
Could you tell me if it helped?
If not, we will find another solution to your answer.
Regards,
Created on 04-28-2022 11:23 AM
I have completed the config, just needed to read up
Do you mind sharing your working config? Wrestling with the same issue and haven't figured out a working config yet. Would appreciate it, thanks.
