IPV6 FQDN objects can't be added to SD-WAN rules

[titanium98118]

Hi,

I find that IPV6 SD-WAN rules are unable to add IPV6 FQDN objects.

Was this by-design? Or a bug?

Device: fortigate 60e

OS: 7.4.7

config firewall address6
    edit "speed.cloudflare.com"
        set uuid 3e275afe-e74f-51ef-ba51-85ac2c2767bd
        set type fqdn
        set fqdn "speed.cloudflare.com"
    next
end

[Jean-Philippe_P]

Hello titanium98118,

Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.

Thanks,

[Jean-Philippe_P]

Hello,

We are still looking for an answer to your question.

We will come back to you ASAP.

Thanks,

[Jean-Philippe_P]

Hello again,

Please tell me if this works:

To add IPv6 FQDN objects to SD-WAN rules with FortiGate 60E running v7.4.7, follow these steps:

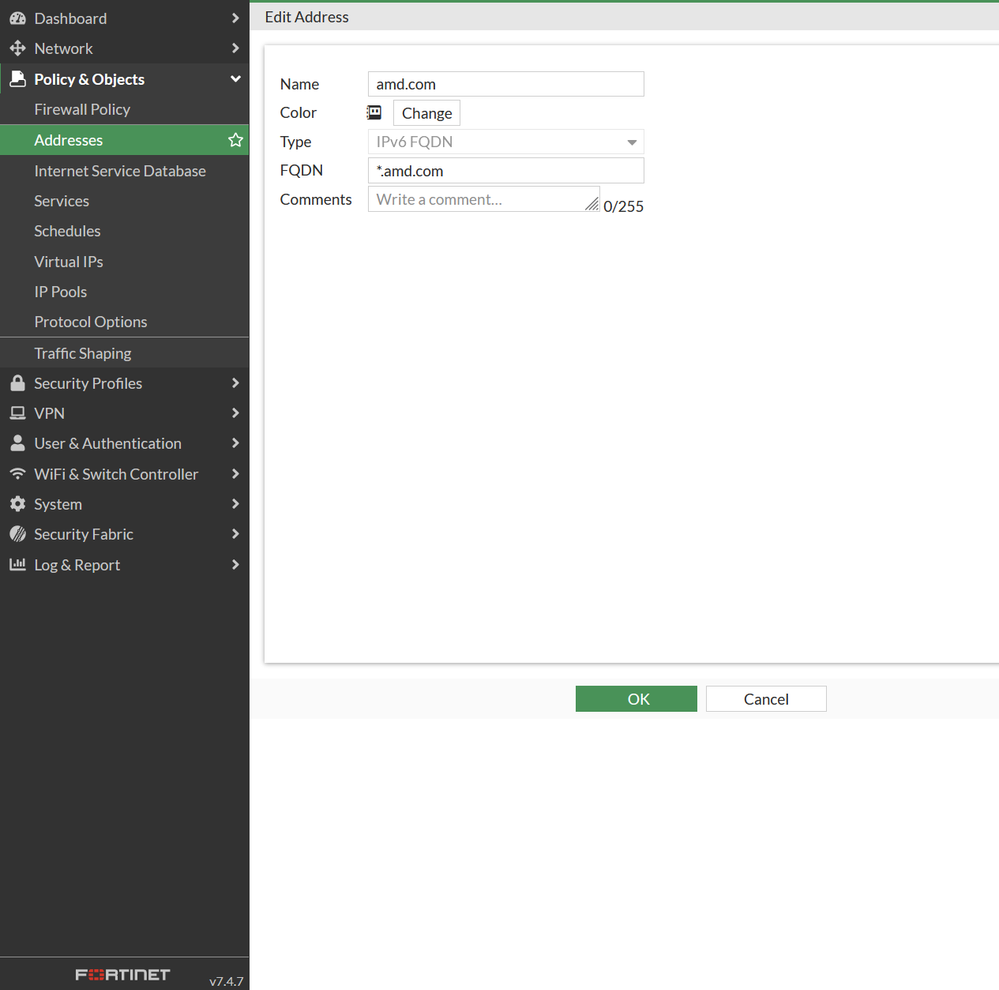

1. Create an IPv6 FQDN Address Object:

   - Go to Policy & Objects -> Addresses -> Addresses.

   - Select Create New and select Address.

   - Choose IPv6 as the Address Type.

   - Enter the FQDN address in the format: ‘*.example.com’.

   - Save the address object.

2. Configure SD-WAN Rule with the IPv6 FQDN Address Object:

   - Go to Policy & Objects -> SD-WAN Rules.

   - Select Create New to add a new rule.

   - Set the Source and Destination as needed.

   - Under Destination Address, select the IPv6 FQDN address object created in step 1.

   - Configure other settings like Service, Members, and Action accordingly.

   - Save the SD-WAN rule.

By following these steps, you can add IPv6 FQDN objects to SD-WAN rules on your FortiGate 60E running v7.4.7.

[titanium98118]

Hi Philippe,

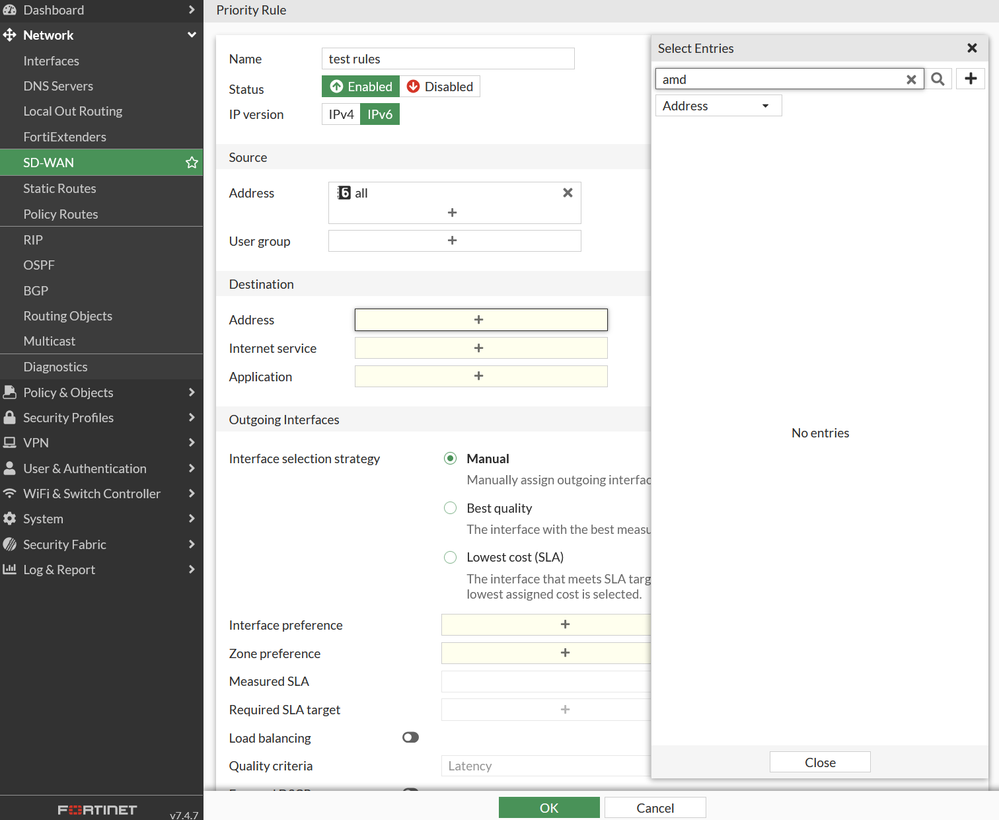

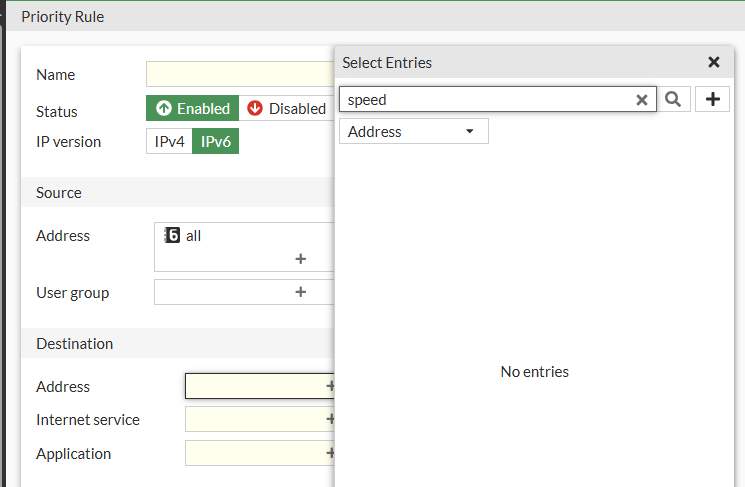

It's still unable to select FQDN object from IPv6 SD-WAN rules.

[rmreddy]

Hi,

looks like it is a bug in v7.4.7, please reach TAC.
In v7.6.x able to create.

[titanium98118]

TAC answered,

It may not a bug. On 7.4.7 version, sdwan rule not support IPv6 FQDN,lt only support IPv6 subnet address.

[Jean-Philippe_P]

Thanks titanium98118 for letting us know!

Have a great day!
