IPS Signatures

[FortiSpain]

Hi,

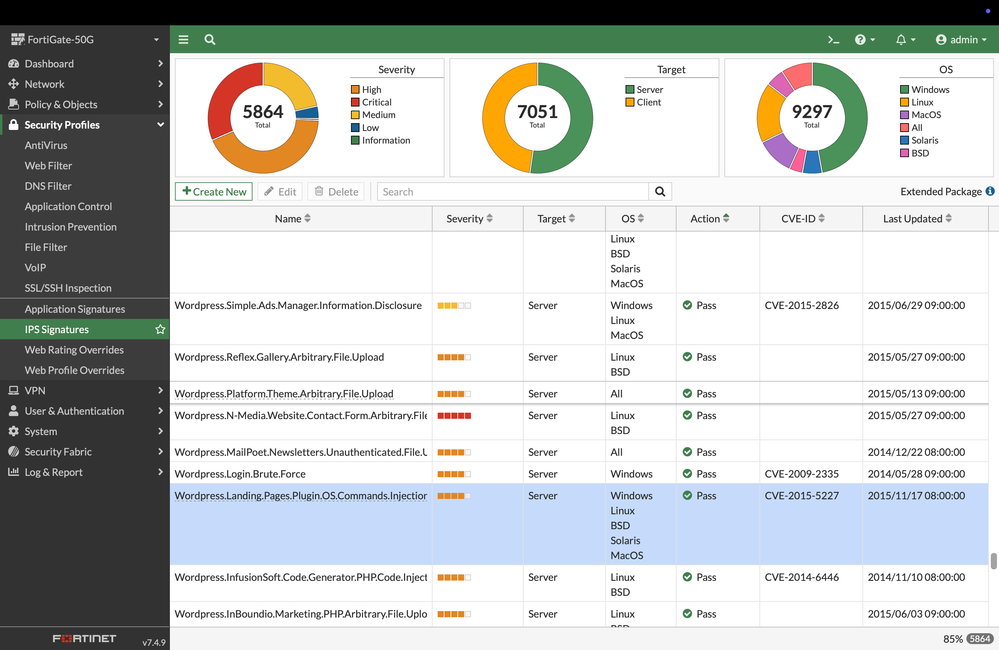

We owe a Fortinet Fortigate 50G in a domestic environment. In the section "IPS Signatures", we can see more than 5864 entries. 84% is blocked but 16% shows "pass":

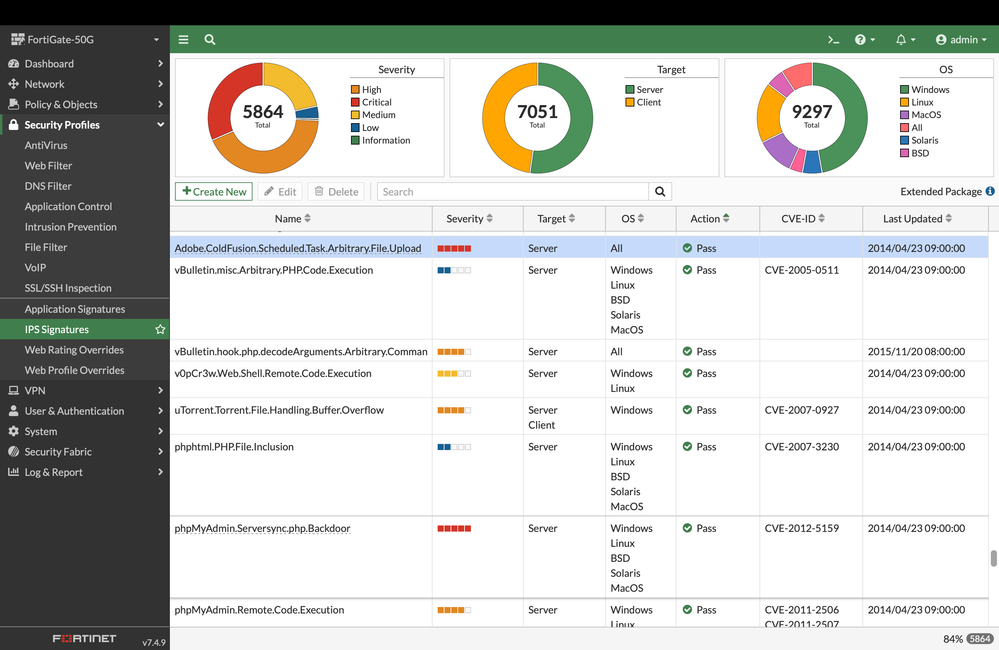

Here you have a few examples:

Does this mean a risk for our installation? Would it be better to have them all marked as "Block"? If positive, how can I change the action?

Thank you

[mpapisetty]

Hi @FortiSpain,

Couple of things here -

1. If you are seeing only 5864 IPS signatures, chances are that these came by default and never got updated. Hence, all the signatures would be stale and so the network is not protected. (The signature package is from 2015, more then 10 years old!)

2. The default action set by FortiGuard works fine for most cases. If there are some signatures in pass, it may mean little to no risk, or it is a new signature that will get updated soon. For instance, in the screenshot, I see "phpMyAdmin.Serversync.php.Backdoor" which is set to pass. As of today, the default action should be drop. Here is the link to the signature - https://www.fortiguard.com/encyclopedia/ips/33351 . As you can see, the signature got an update in 2017 which is not reflected in your screenshot as the IPS package you are running is very old.

Unless you have a policy with IPS enabled on the firewall and with a valid support contract for UTM, you will not see any updates on the package.

Hope this information helps.

[FortiSpain]

Hi @mpapisetty

Thank you very much for your clear reply.

Could you be so kind as to answer the following question, please?

How is it possible to have such an old IPS package when the FortiGate is new?

How can I turn all the "pass" settings to "drop/block"?

I guess that UTM means "Unified Threat Management". The fact is that we have hired 1 year FortiCare Premium and FortiGuard UTP (United Threat)... So, the list should be updated (at least, by the company who installed the firewall), right?

Thanks again

[mpapisetty]

Hi @FortiSpain ,

Here are the answers -

1. What you are seeing is the "default" package. The updates only happen through FortiGuard on devices with a valid contract.

2. If you have a valid license/contract, yes.

Here is a troubleshooting document that can help with the updates - https://community.fortinet.com/t5/FortiGate/Technical-Tip-Verifying-and-troubleshooting-FortiGuard-u...

[FortiSpain]

Thank you.

Where can I see the date of the last updates for each service (anti-virus definitions, anti-virus engine, IPS definitions...)?

Thank you

[mpapisetty]

The article I shared earlier shows both GUI and CLI way of checking it. On the CLI, the command is "diagnose autoupdate versions". On the GUI, System -> FortiGuard.

[FortiSpain]

Thank you very much again.

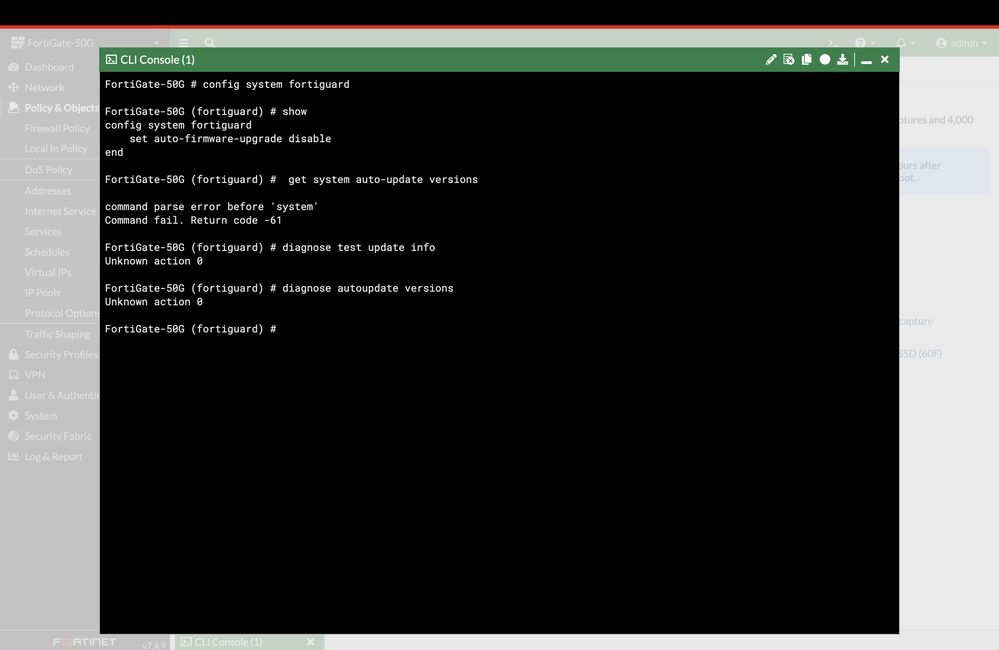

In CLI, the commands do not work. I guess I made something wrong. Thanks you for letting me know what it is.

On GUI, I have pressed the button "Update Licenses & Definitions now". IPS >> Botnet IPs and Botnet Domains have been updated... But not the IPS definitions nor Malicious URL nor IPS definitions. However, IPS engine has been updated on 27th of August 2025 (Version 7.00587). Should I feel confident?

[mpapisetty]

On the CLI, the commands are not within the "config system fortiguard", you will need to exit and then run them.

IPS Engine is different from IPS signatures. Think of it like the gun and the bullets. You got a latest gun but you ammo is still old and not effective.

If you can share a screenshot or the CLI output of the versions you currently have, I can help check if you are equipped with the latest signatures.
