I am curious about the status value of "diagnose sys ha dump-by group".

[H_DY]

I am curious about the status value of "diagnose sys ha dump-by group".

"diagnose sys ha dump-by group"

state/o/chg_time=3(waiting)/2(working)/1706239048

I understand status and chg_time.

What does "/o/" mean?

FortiGate

[saleha · Accepted solution]

Hello,

Thank you for reaching out. This line indicates status of the members of the cluster, type of the cluster- aa or ap and time that status last changed:

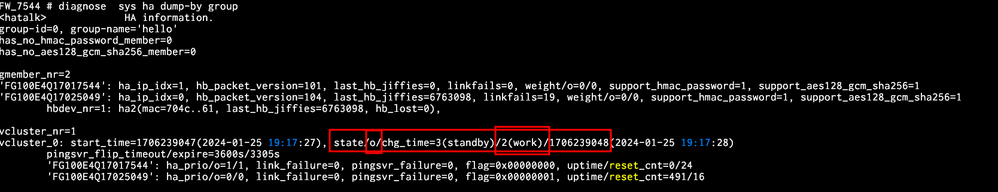

on the screenshot you provided:

status=3 means this is secondary member of the cluster

o= standby meaning this is a passive member and that indicates active-passive configuration

chg_time is up time in seconds I believe - could not find a reference for chg_time but comparing it to other diagnostic commands

saleha
