How would you do this? Calling all guru' s.

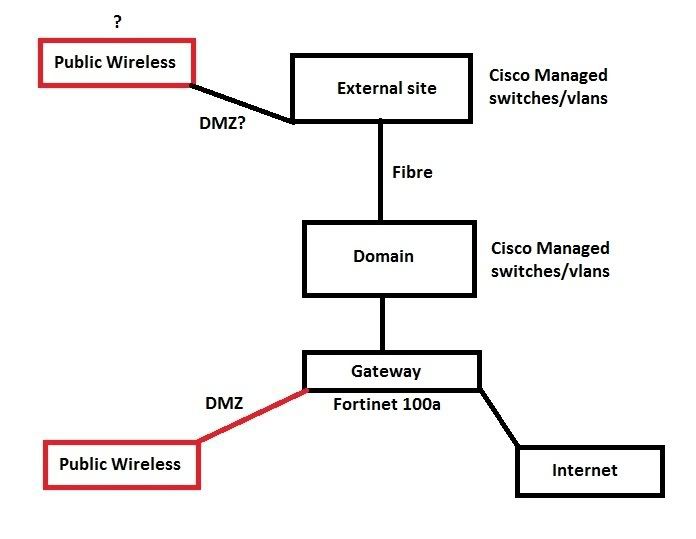

We have an unsecured linksys wifi public access point connected to our Fortinet 100a. It is walled off from the rest of the network and allows only internet access for visitors. I' d like to do the same thing at another remote site 2kms away that is connected to our domain via fibre optic. So how would I get a linksys router to pipe through our domain and join the public network? I' ve attached a sketch that I hope helps. Thanks in advance.
New Contributor

You could create a separate VLAN for the other wireless AP. Add a tagged VLAN interface to the existing 100a domain interface and appropriate firewall rules similar to the exsting AP.
Not applicable

Thank you, I will try that.
