Fortigate static route issue || lower distance is active ||

[Umesh]

Dear all.

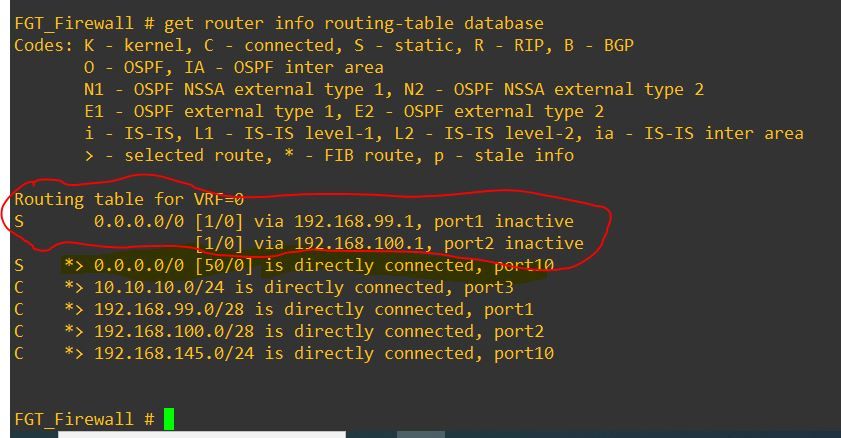

I need your support as today I have faced issue with routing. we have lower distance AD for two static route but higher distance is shwoing best route why. please have a look snapshot and provide your opinion what needs to be done.

I want to make best route for two networks which are connected to ISP.

192.168.99.0/28

192.168.100.0/28

as per lower distance above the both route should be consider as a best route. and 192.168.145.0/24 should not be considered as a best route because distance is 50.



[ebilcari]

Kindly go through this article and find the reason why those two routes are considered as inactive.

[AEK]

Hi Umesh

The default route on port10 shows "directly connected". Seems a bit strange for me.

Do you have a secondary IP configured on port10?

Can you share the a screenshot of your static routes (Network > Static Routes)?

[ametkola]

Hello @Umesh ,

From the screen attached routes towards port1 and port2 are inactive. Do you have SD-WAN configured ? If yes you can check the SLA performance .Also you can check further information in the article :https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-create-a-static-route-on-FortiGate-...
