Fortigate 200E issue with the VPN

[User10]

Hello,

I used two fortigate 200E, i have an issue with the vpn.

I'm on the IT team,

I can connect the site with the vpn client (forticlient 7.0.3.0193) but only the files of our serveur file.

No ping is working through the VPN or RDP or anything else except the file of the server file.

I have an administrator acces on the VPN and i allow everything but it isn't working

Here is the configuration of the vpn.

I made a user group "G-SSL-ADMIN" with the users allowed

Screen 1

On SSL-VPN Portals i made a full access group

Screen 2

SSL-VPN Personal Bookmarks.

Someone has an idea ?

 

[GauravPandya]

Can you please share screenshot of SSL VPN setting and configured policy?

[User10]

  

[GauravPandya]

Please share configured policy screenshot. I just want to verify if destination and services are allowed in policy or not.

[User10]

 

[User10]

Where is configured policy ?

[GauravPandya]

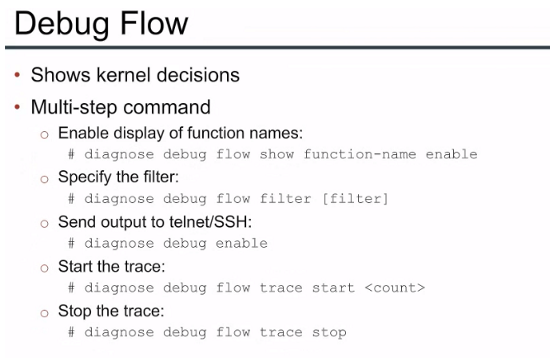

Please make sure all required services like ICMP are present in policy. check the logs for which you are not able to access destination. Run debug flow to troubleshoot issue, it will give you reason for drop. Hop this will help.



[Sheikh]

Hello @User10

You can enable the following debug logs and test again.

diagnose debug disable

diagnose debug reset
diagnose debug cons time enable

diag vpn ssl debug-filter src-addr4 x.x.x.x (Replace x.x.x.x with the IP address of the PC connected to the SSL VPN)
diagnose debug app sslvpn -1

diagnose debug enable

***********reproduce the issue**********

regards,

Sheikh

[User10]

Hello,

Thanks for the reply.

I'm logged on the firewall CLI Console there is no ssh or telnet enable.

When i type : diagnose debug disable

 

[User10]

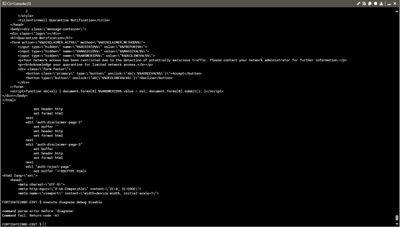

I can't make any diagnostic, because the command are not working :

diagnose debug disable

diagnose debug reset
diagnose debug cons time enable

diag vpn ssl debug-filter src-addr4 x.x.x.x (Replace x.x.x.x with the IP address of the PC connected to the SSL VPN)
diagnose debug app sslvpn -1

diagnose debug enable

Someone has an idea ?
