Hi Experts,
I'm trying to setup a Virtual FortiManager on my EVE-NG platform. I have performed the following configurations on it through the CLI:
config system interface edit "port2" set ip 192.168.1.200 255.255.255.0 set allowaccess ping https ssh http next end
My workstation IP is 192.168.1.14 and I'm am able to ping it successfully.
C:\Users\Arpit>ping 192.168.1.200 Pinging 192.168.1.200 with 32 bytes of data: Reply from 192.168.1.200: bytes=32 time=119ms TTL=64 Reply from 192.168.1.200: bytes=32 time=211ms TTL=64 Reply from 192.168.1.200: bytes=32 time=307ms TTL=64 Reply from 192.168.1.200: bytes=32 time=389ms TTL=64 Ping statistics for 192.168.1.200: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 119ms, Maximum = 389ms, Average = 256ms
However, whenever I try to access the FortiManager WebGUI on a browser (Chrome, FireFox, etc.) I receive the following error:
192.168.1.200 refused to connect.
If someone is aware of this problem, kindly let me know how I could rectify this to access the FMG WebGUI.
Any help would be greatly appreciated :)
Regards,
Arpit Roy
Nominating a forum post submits a request to create a new Knowledge Article based on the forum post topic. Please ensure your nomination includes a solution within the reply.
I had the same problem, Just increased the RAM to 4GB (4096)
I had the same problem, and resolve increase the memory to 8192 and 4 cpu.
Before that the fortimanager was try to create the LVM but does not work, and after increase the memory and cpu, works as expected.
This work for me.
After increased the memory ii didn't work, but after increased the memory and CPU it works
In case you try to connect from a different subnet, you need to install a default route first:
conf sys route
edit 0
set dstint port1
set dest 0.0.0.0/0
set gateway x.x.x.x
next
end
(from memory, you'll find the exact syntax, it's similar to FortiOS).
Of course, this is not the root cause if your PC is on the same subnet. A valid ping test will show you that a route is not needed.
And, for "trusted hosts", these are not preset in a new VM.
i have problem who can help me

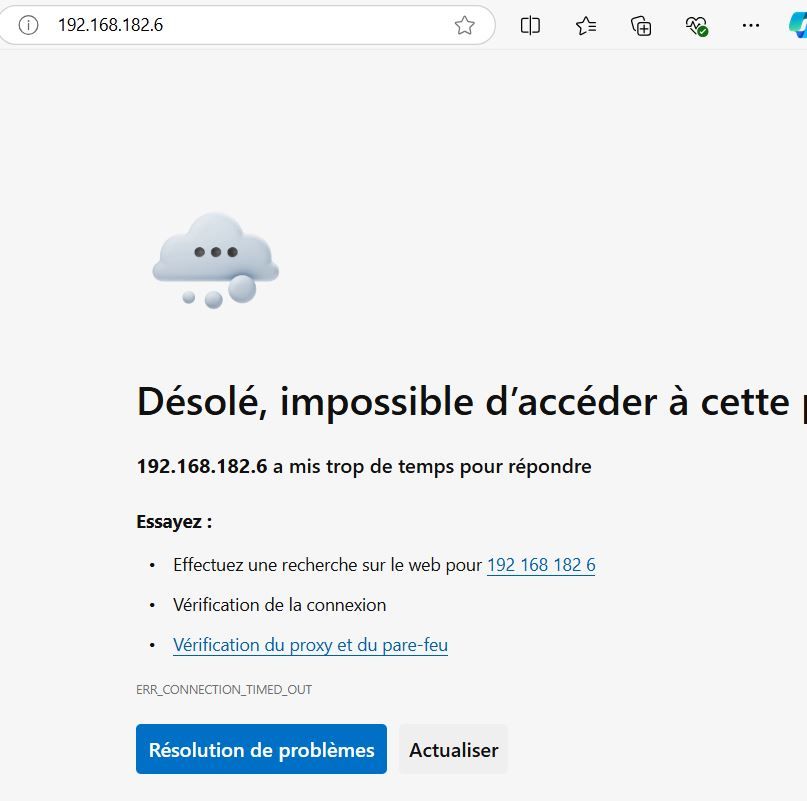

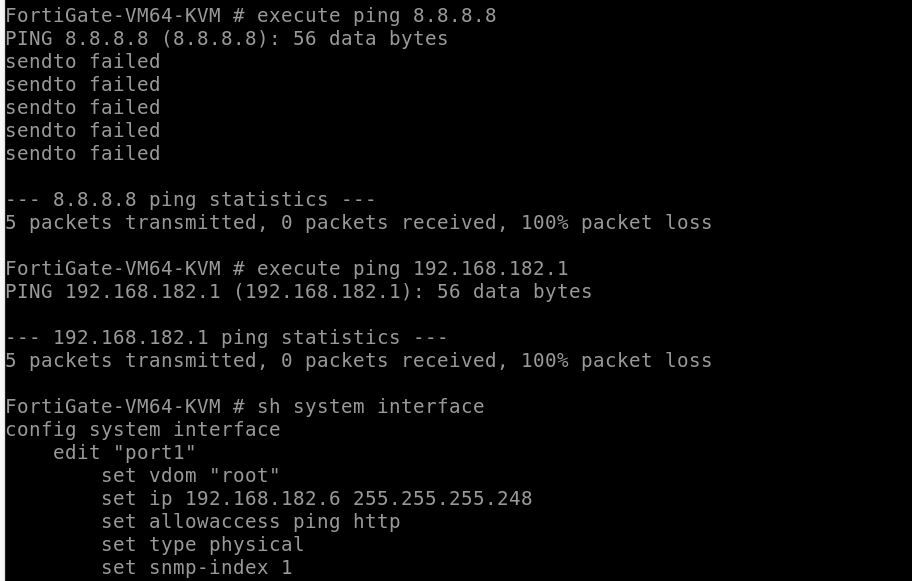

i can't ping to the @OF fortinet from cmd also i Can't ping to 8.8.8.8 and the GUI is not connect neeeeed help plzzz
Just increase the RAM to 4BG (4096).
good luck
