Error when activating Fortigate CLOUD

Querido,

Vou descrever meu cenário, para melhor entender o problema,
tenho quatro Fortigate 50E (Branches) que se conectam ao Fortigate 80E (HA) através da VPN IPSEC (Site-to-Site), as estações Windows que ficam atrás do Fortigate 50E , todo oo acesso da rede às estações é feito através do túnel VPN , incluindo o acesso à internet.

Fortigar rotas padrão estáticas 50E e túnel VPN.
Assim, o acesso à internet a partir das estações Woindows é feito por esta rota padrão.

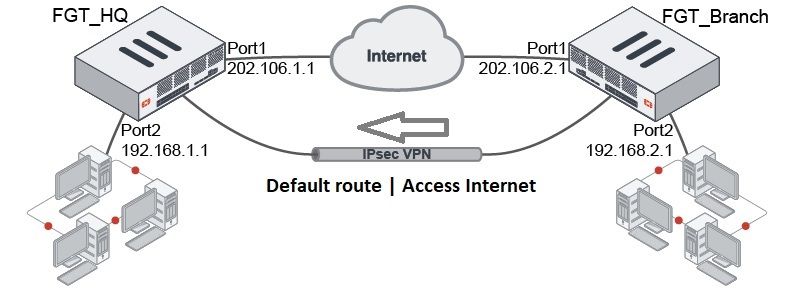

Túnel VPN de rota padrão - Filial



route VPN.jpg

Problema que desta forma não consigo ativar o Fortigate Cloud, por causa da rota padrão que foi definida como túnel VPN.

Existe alguma maneira de contornar esse problema?

1 REPLY 1
xshkurti
Staff
Staff

You can create static route that uses FQDN as per below:

Technical Tip: Creating a static route that uses a... - Fortinet Community

and put fortiguard services as destination using normal WAN traffic.

Also configure fortiguard services with source interface
config system fortiguard:
set interface-select-method specify
set interface wan-interface

Configure and edit the Local-out Routing (Source-I... - Fortinet Community
