DPD IpSec Failures on Forticlient VPN

[AP113BY]

For some reason my last post got flagged as "spam" so here it is again.

DPD Failures on IpSec VPN

Hi

In summary between 45 Minutes to every 3 hours, every single IpSec VPN Tunnel gets torn down with a DPD-error. An example log I have included below.

General

Absolute Date/Time	2026-01-04
Last Access Time	14:45:21
VDOM	root
Log Description	IPsec DPD failed

Source

Local IP	XXXX
FortiClient ID	7D7A0CD5D9574D5AB509F5519F68B9F8
User	XXXX
Group	N/A
XAUTH User	XXXXX
XAUTH Group	FortiClient Users

Action

Action	dpd
Status	dpd_failure

Security

Level

Error

Event

Assigned IP	XXXXX
Cookies	c7e291824a726956/c9f2b20f46158b9f
Local Port	4500
Outgoing Interface	wan1
Remote IP	XXXXXX
Remote Port	64917
VPN Tunnel	Forticlient VPN_0
Message	IPsec DPD failure

Other

Log event original timestamp (µs)	1767537921187226000
eventtime_raw_value	1767537921187226120
Log ID	0101037136
Type	event
Sub Type	vpn
Alternate User	N/A
ADVPN Shortcut	0

Below is the my current configuration for IpSec VPN

Phase 1:

config vpn ipsec phase1-interface
edit "Forticlient VPN"
set type dynamic
set interface "wan1"
set ip-version 4
set ike-version 1
set local-gw 0.0.0.0
set keylife 86400
set authmethod psk
set mode aggressive
set peertype any
set monitor-min 0
set net-device disable
set exchange-interface-ip disable
set aggregate-member disable
set packet-redistribution disable
set mode-cfg enable
set ipv4-wins-server1 0.0.0.0
set ipv4-wins-server2 0.0.0.0
set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
set add-route enable
set localid ''
set localid-type auto
set negotiate-timeout 30
set fragmentation enable
set ip-fragmentation post-encapsulation
set dpd on-idle
set comments "VPN: Forticlient VPN (Created by VPN wizard)"
set npu-offload enable
set dhgrp 5 14 20
set suite-b disable
set wizard-type dialup-forticlient
set xauthtype auto
set reauth disable
set authusrgrp "FortiClient Users"
set idle-timeout disable
set ha-sync-esp-seqno enable
set fgsp-sync disable
set inbound-dscp-copy disable
set auto-discovery-sender disable
set auto-discovery-receiver disable
set auto-discovery-forwarder disable
set encapsulation none
set nattraversal enable
set rekey enable
set enforce-unique-id disable
set fec-egress disable
set fec-ingress disable
set link-cost 0
set exchange-fgt-device-id disable
set ems-sn-check disable
set qkd disable
set default-gw 0.0.0.0
set default-gw-priority 0
set assign-ip enable
set assign-ip-from range
set ipv4-start-ip 10.10.10.1
set ipv4-end-ip 10.10.10.254
set ipv4-netmask 255.255.255.255
set dns-mode auto
set ipv4-split-include "FortiClient VPN_split"
set split-include-service ''
set ipv6-start-ip ::
set ipv6-end-ip ::
set ipv6-prefix 128
set ipv6-split-include ''
set ip-delay-interval 0
set unity-support enable
set domain ''
set banner ''
set include-local-lan disable
set ipv4-split-exclude ''
set ipv6-split-exclude ''
set save-password enable
set client-auto-negotiate disable
set client-keep-alive disable
set psksecret xxxxxx
set keepalive 10
set distance 15
set priority 1
set dpd-retrycount 5
set dpd-retryinterval 20
next
end

Phase 2:

config vpn ipsec phase2-interface
edit "Forticlient VPN"
set phase1name "Forticlient VPN"
set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
set pfs enable
set dhgrp 5 14 20
set replay enable
set keepalive enable
set add-route phase1
set inbound-dscp-copy phase1
set auto-discovery-sender phase1
set auto-discovery-forwarder phase1
set keylife-type seconds
set single-source disable
set route-overlap use-new
set encapsulation tunnel-mode
set comments "VPN: Forticlient VPN (Created by VPN wizard)"
set diffserv disable
set protocol 0
set src-addr-type subnet
set src-port 0
set dst-addr-type subnet
set dst-port 0
set keylifeseconds 43200
set src-subnet 0.0.0.0 0.0.0.0
set dst-subnet 0.0.0.0 0.0.0.0
next
end

Fortigate Firmware Version: v7.6.5

Forticlient Version: 7.4.3.1790

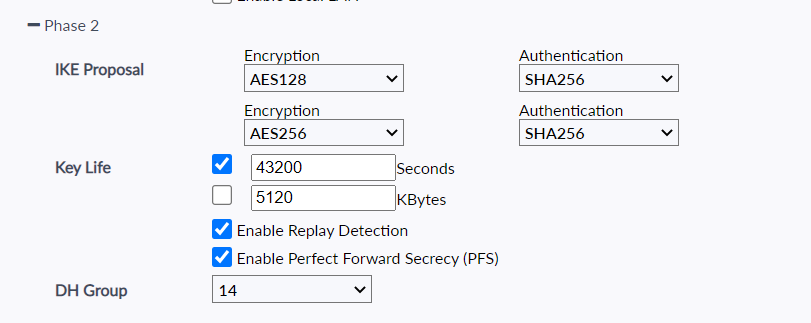

Forticlient Configuration

[Jean-Philippe_P]

Hello AP113BY,

Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.

[Jean-Philippe_P]

Hello,

We are still looking for an answer to your question.

We will come back to you ASAP.

[AP113BY]

Thanks!

I have worked around this temporarily by disabling DPD on Phase 1 and PFS on Phase 2.

I have also made some config updates to only accept DH Group 14 with the Authentication all changed to SHA256 on both phases on both the my 80F and the forticlient applications.

Appreciate this may not be entirely best pratice but open to config suggestions. I'm planning an IKE change over to V2 within the coming weeks.

[Jean-Philippe_P]

Hello again AP113BY,

I found this solution. Can you tell us if it helped you, please?

To address the DPD (Dead Peer Detection) failures on your IPsec VPN, you can try the following steps:

1. Increase DPD Retry Count and Interval:

   • You can increase the dpd-retrycount and dpd-retryinterval to allow more time for the VPN to recover from temporary network issues.
   • Example CLI commands:



     config vpn ipsec phase1-interface
     edit "forticlient vpn"
     set dpd-retrycount 10
     set dpd-retryinterval 30
     next
     end


2. Check Network Stability: Ensure that the network connection between the FortiGate and the remote client is stable. Any intermittent network issues can cause DPD failures.



3. Review FortiClient Configuration: Ensure that the FortiClient configuration is correct and matches the FortiGate settings. Check for any discrepancies in the IPsec settings.



4. Firmware and Software Updates: Ensure that both the FortiGate and FortiClient are running the latest stable firmware and software versions. Sometimes, updates contain fixes for known issues.



5. Monitor Logs: Continue to monitor the logs for any additional error messages or patterns that might indicate the root cause of the issue.



6. Consult Fortinet Support: If the issue persists, consider reaching out to Fortinet Support for further assistance. They may provide additional insights or solutions specific to your configuration.

By following these steps, you should be able to mitigate the DPD failures and improve the stability of your IPsec VPN connection.
