I have 2 Fortigate setup as below, and the issue as follows.
FW1 cannot ping anything on FW2. network, but FW2 can ping FW1's 10.11.30 and 10.11.40 network.
BGP is setup between the 2 and is working fine, with RouteMap and Prefix List, so traffic from 10.11.30.0 flows through port1 (192.168.9.181) and 10.11.40.0 through port2 (192.168.9.182), smae configuration is on FW2 for 10.21 network.
FW1
Routing table for VRF=0
C 10.11.30.0/24 is directly connected, VLAN30
C 10.11.40.0/24 is directly connected, VLAN40
B 10.21.30.0/24 [20/0] via 192.168.9.182 (recursive is directly connected, port1), 00:18:07, [1/0]
B 10.21.40.0/24 [20/0] via 192.168.10.182 (recursive is directly connected, port2), 00:17:40, [1/0]
C 192.168.9.0/24 is directly connected, port1
C 192.168.10.0/24 is directly connected, port2
FW2
Routing table for VRF=0
B 10.11.30.0/24 [20/0] via 192.168.9.181 (recursive is directly connected, port1), 00:18:47, [1/0]
B 10.11.40.0/24 [20/0] via 192.168.10.181 (recursive is directly connected, port2), 00:18:15, [1/0]
C 10.21.30.0/24 is directly connected, VLAN2130
C 10.21.40.0/24 is directly connected, VLAN2140
C 192.168.9.0/24 is directly connected, port1
C 192.168.10.0/24 is directly connected, port2
I ran sniffer on FW2 to capture the traffic and this is all no icmp reply
FW2 # diagnose sniffer packet any 'host 192.168.9.181' 4 0 1 interfaces=[any]
Using Original Sniffing Mode
interfaces=[any]
filters=[host 192.168.9.181]
pcap_snapshot: snaplen raised from 0 to 262144
0.696750 port1 in 192.168.9.181 -> 10.21.30.100: icmp: echo request
1.696916 port1 in 192.168.9.181 -> 10.21.30.100: icmp: echo request
2.697103 port1 in 192.168.9.181 -> 10.21.30.100: icmp: echo request
3.697244 port1 in 192.168.9.181 -> 10.21.30.100: icmp: echo request
4.696819 port1 in arp who-has 192.168.9.182 tell 192.168.9.181
4.696838 port1 out arp reply 192.168.9.182 is-at 00:0c:29:a3:9f:f6
25.959741 port1 in 192.168.9.181.10737 -> 192.168.9.182.179: psh 1515141430 ack 1109234650
25.959852 port1 out 192.168.9.182.179 -> 192.168.9.181.10737: ack 1515141449
26.637436 port1 out 192.168.9.182.179 -> 192.168.9.181.10737: psh 1109234650 ack 1515141449
26.638116 port1 in 192.168.9.181.10737 -> 192.168.9.182.179: ack 1109234669
30.977359 port1 out arp who-has 192.168.9.181 tell 192.168.9.182
30.977987 port1 in arp reply 192.168.9.181 is-at 00:0c:29:ef:3e:b4
The policies are the same on both.
Not sure what is going on, any thoughts ?
Thank you
Solved! Go to Solution.
Nominating a forum post submits a request to create a new Knowledge Article based on the forum post topic. Please ensure your nomination includes a solution within the reply.
For example, you're missing VL30 > p2, if VL30 is sending traffic to VL2140. You've got only half of the required policies.
Are port1, port2 on both FGTs allowed to ping?
Apart from the ping experiment:
A FGT is 1- a router AND 2- a firewall. Are the policies sufficient? Which ones have you implemented?
Do you have administrative access for ping enable on firewall 2 interface with IP address 10.21.30.100?
Can you check if 10.21.30.100 is configured as part of any VIP?
show full-configuration | grep 10.21.30.100 , use "-f" to see the full configuration hierarchy "10.21.30.100 -f"
If there is no references we may run a debug flow to understand the processing.
diagnose debug flow filter daddr 10.21.30.100
diagnose debug flow filter saddr 192.168.9.181
diagnose debug flow filter proto 1
diagnose debug flow show function-name enable
diagnose debug flow show iprope enable
diagnose debug flow trace start 100
diagnose debug enable
@ede_pfau and @DPadula all interfaces have ping allowed.
@srajeswaran there is special configuration on the firewall, its all basic configuration.
More Information
FW1 interface
FW1 Policy

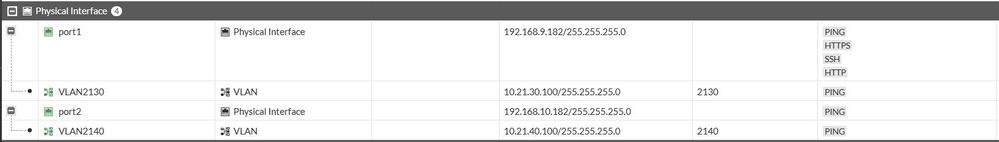

FW2 Interface
FW2 Policy
Can you collect the flow debug and share?
I ran this on FW2..
FW2 # diagnose debug flow filter daddr 10.21.30.100
FW2 # diagnose debug flow filter saddr 192.168.9.181
FW2 # diagnose debug flow filter proto 1
FW2 # diagnose debug flow show function-name enable
show function name
FW2 # diagnose debug flow show iprope enable
show trace messages about iprope
FW2 # diagnose debug flow trace start 100
FW2 # diagnose debug enable
FW2 # id=65308 trace_id=1 func=print_pkt_detail line=5885 msg="vd-root:0 received a packet(proto=1, 192.168.9.181:0->10.21.30.100:2048) tun_id=0.0.0.0 from port1. type=8, code=0, id=0, seq=0."
id=65308 trace_id=1 func=init_ip_session_common line=6071 msg="allocate a new session-0000012e, tun_id=0.0.0.0"
id=65308 trace_id=1 func=iprope_dnat_check line=5459 msg="in-[port1], out-[]"
id=65308 trace_id=1 func=iprope_dnat_tree_check line=824 msg="len=0"
id=65308 trace_id=1 func=iprope_dnat_check line=5480 msg="result: skb_flags-02000000, vid-0, ret-no-match, act-accept, flag-00000000"
id=65308 trace_id=1 func=__vf_ip_route_input_rcu line=1999 msg="find a route: flag=80000000 gw-0.0.0.0 via root"
id=65308 trace_id=1 func=iprope_access_proxy_check line=458 msg="in-[port1], out-[], skb_flags-02000000, vid-0"
id=65308 trace_id=1 func=__iprope_check line=2391 msg="gnum-100017, check-000000004d58f73b"
id=65308 trace_id=1 func=iprope_policy_group_check line=4886 msg="after check: ret-no-match, act-accept, flag-00000000, flag2-00000000"
id=65308 trace_id=1 func=__iprope_fwd_check line=801 msg="in-[port1], out-[VLAN2130], skb_flags-02000000, vid-0, app_id: 0, url_cat_id: 0"
id=65308 trace_id=1 func=__iprope_tree_check line=524 msg="gnum-100004, use int hash, slot=35, len=2"
id=65308 trace_id=1 func=__iprope_check_one_policy line=2128 msg="checked gnum-100004 policy-3, ret-no-match, act-accept"
id=65308 trace_id=1 func=__iprope_check_one_policy line=2128 msg="checked gnum-100004 policy-0, ret-matched, act-accept"
id=65308 trace_id=1 func=__iprope_user_identity_check line=1891 msg="ret-matched"
id=65308 trace_id=1 func=__iprope_check_one_policy line=2361 msg="policy-0 is matched, act-drop"
id=65308 trace_id=1 func=__iprope_fwd_check line=838 msg="after iprope_captive_check(): is_captive-0, ret-matched, act-drop, idx-0"
id=65308 trace_id=1 func=fw_local_in_handler line=616 msg="iprope_in_check() check failed on policy 0, drop"
id=65308 trace_id=2 func=print_pkt_detail line=5885 msg="vd-root:0 received a packet(proto=1, 192.168.9.181:0->10.21.30.100:2048) tun_id=0.0.0.0 from port1. type=8, code=0, id=0, seq=1."
id=65308 trace_id=2 func=init_ip_session_common line=6071 msg="allocate a new session-0000012f, tun_id=0.0.0.0"
id=65308 trace_id=2 func=iprope_dnat_check line=5459 msg="in-[port1], out-[]"
id=65308 trace_id=2 func=iprope_dnat_tree_check line=824 msg="len=0"
id=65308 trace_id=2 func=iprope_dnat_check line=5480 msg="result: skb_flags-02000000, vid-0, ret-no-match, act-accept, flag-00000000"
id=65308 trace_id=2 func=__vf_ip_route_input_rcu line=1999 msg="find a route: flag=80000000 gw-0.0.0.0 via root"
id=65308 trace_id=2 func=iprope_access_proxy_check line=458 msg="in-[port1], out-[], skb_flags-02000000, vid-0"
id=65308 trace_id=2 func=__iprope_check line=2391 msg="gnum-100017, check-000000004d58f73b"
id=65308 trace_id=2 func=iprope_policy_group_check line=4886 msg="after check: ret-no-match, act-accept, flag-00000000, flag2-00000000"
id=65308 trace_id=2 func=__iprope_fwd_check line=801 msg="in-[port1], out-[VLAN2130], skb_flags-02000000, vid-0, app_id: 0, url_cat_id: 0"
id=65308 trace_id=2 func=__iprope_tree_check line=524 msg="gnum-100004, use int hash, slot=35, len=2"
id=65308 trace_id=2 func=__iprope_check_one_policy line=2128 msg="checked gnum-100004 policy-3, ret-no-match, act-accept"
id=65308 trace_id=2 func=__iprope_check_one_policy line=2128 msg="checked gnum-100004 policy-0, ret-matched, act-accept"
id=65308 trace_id=2 func=__iprope_user_identity_check line=1891 msg="ret-matched"
id=65308 trace_id=2 func=__iprope_check_one_policy line=2361 msg="policy-0 is matched, act-drop"
id=65308 trace_id=2 func=__iprope_fwd_check line=838 msg="after iprope_captive_check(): is_captive-0, ret-matched, act-drop, idx-0"
id=65308 trace_id=2 func=fw_local_in_handler line=616 msg="iprope_in_check() check failed on policy 0, drop"
id=65308 trace_id=3 func=print_pkt_detail line=5885 msg="vd-root:0 received a packet(proto=1, 192.168.9.181:0->10.21.30.100:2048) tun_id=0.0.0.0 from port1. type=8, code=0, id=0, seq=2."
id=65308 trace_id=3 func=init_ip_session_common line=6071 msg="allocate a new session-00000130, tun_id=0.0.0.0"
id=65308 trace_id=3 func=iprope_dnat_check line=5459 msg="in-[port1], out-[]"
id=65308 trace_id=3 func=iprope_dnat_tree_check line=824 msg="len=0"
id=65308 trace_id=3 func=iprope_dnat_check line=5480 msg="result: skb_flags-02000000, vid-0, ret-no-match, act-accept, flag-00000000"
id=65308 trace_id=3 func=__vf_ip_route_input_rcu line=1999 msg="find a route: flag=80000000 gw-0.0.0.0 via root"
id=65308 trace_id=3 func=iprope_access_proxy_check line=458 msg="in-[port1], out-[], skb_flags-02000000, vid-0"
id=65308 trace_id=3 func=__iprope_check line=2391 msg="gnum-100017, check-000000004d58f73b"
id=65308 trace_id=3 func=iprope_policy_group_check line=4886 msg="after check: ret-no-match, act-accept, flag-00000000, flag2-00000000"
id=65308 trace_id=3 func=__iprope_fwd_check line=801 msg="in-[port1], out-[VLAN2130], skb_flags-02000000, vid-0, app_id: 0, url_cat_id: 0"
id=65308 trace_id=3 func=__iprope_tree_check line=524 msg="gnum-100004, use int hash, slot=35, len=2"
id=65308 trace_id=3 func=__iprope_check_one_policy line=2128 msg="checked gnum-100004 policy-3, ret-no-match, act-accept"
id=65308 trace_id=3 func=__iprope_check_one_policy line=2128 msg="checked gnum-100004 policy-0, ret-matched, act-accept"
id=65308 trace_id=3 func=__iprope_user_identity_check line=1891 msg="ret-matched"
id=65308 trace_id=3 func=__iprope_check_one_policy line=2361 msg="policy-0 is matched, act-drop"
id=65308 trace_id=3 func=__iprope_fwd_check line=838 msg="after iprope_captive_check(): is_captive-0, ret-matched, act-drop, idx-0"
id=65308 trace_id=3 func=fw_local_in_handler line=616 msg="iprope_in_check() check failed on policy 0, drop"
id=65308 trace_id=4 func=print_pkt_detail line=5885 msg="vd-root:0 received a packet(proto=1, 192.168.9.181:0->10.21.30.100:2048) tun_id=0.0.0.0 from port1. type=8, code=0, id=0, seq=3."
id=65308 trace_id=4 func=init_ip_session_common line=6071 msg="allocate a new session-00000131, tun_id=0.0.0.0"
id=65308 trace_id=4 func=iprope_dnat_check line=5459 msg="in-[port1], out-[]"
id=65308 trace_id=4 func=iprope_dnat_tree_check line=824 msg="len=0"
id=65308 trace_id=4 func=iprope_dnat_check line=5480 msg="result: skb_flags-02000000, vid-0, ret-no-match, act-accept, flag-00000000"
id=65308 trace_id=4 func=__vf_ip_route_input_rcu line=1999 msg="find a route: flag=80000000 gw-0.0.0.0 via root"
id=65308 trace_id=4 func=iprope_access_proxy_check line=458 msg="in-[port1], out-[], skb_flags-02000000, vid-0"
id=65308 trace_id=4 func=__iprope_check line=2391 msg="gnum-100017, check-000000004d58f73b"
id=65308 trace_id=4 func=iprope_policy_group_check line=4886 msg="after check: ret-no-match, act-accept, flag-00000000, flag2-00000000"
id=65308 trace_id=4 func=__iprope_fwd_check line=801 msg="in-[port1], out-[VLAN2130], skb_flags-02000000, vid-0, app_id: 0, url_cat_id: 0"
id=65308 trace_id=4 func=__iprope_tree_check line=524 msg="gnum-100004, use int hash, slot=35, len=2"
id=65308 trace_id=4 func=__iprope_check_one_policy line=2128 msg="checked gnum-100004 policy-3, ret-no-match, act-accept"
id=65308 trace_id=4 func=__iprope_check_one_policy line=2128 msg="checked gnum-100004 policy-0, ret-matched, act-accept"
id=65308 trace_id=4 func=__iprope_user_identity_check line=1891 msg="ret-matched"
id=65308 trace_id=4 func=__iprope_check_one_policy line=2361 msg="policy-0 is matched, act-drop"
id=65308 trace_id=4 func=__iprope_fwd_check line=838 msg="after iprope_captive_check(): is_captive-0, ret-matched, act-drop, idx-0"
id=65308 trace_id=4 func=fw_local_in_handler line=616 msg="iprope_in_check() check failed on policy 0, drop"
id=65308 trace_id=5 func=print_pkt_detail line=5885 msg="vd-root:0 received a packet(proto=1, 192.168.9.181:0->10.21.30.100:2048) tun_id=0.0.0.0 from port1. type=8, code=0, id=0, seq=4."
id=65308 trace_id=5 func=init_ip_session_common line=6071 msg="allocate a new session-00000132, tun_id=0.0.0.0"
id=65308 trace_id=5 func=iprope_dnat_check line=5459 msg="in-[port1], out-[]"
id=65308 trace_id=5 func=iprope_dnat_tree_check line=824 msg="len=0"
id=65308 trace_id=5 func=iprope_dnat_check line=5480 msg="result: skb_flags-02000000, vid-0, ret-no-match, act-accept, flag-00000000"
id=65308 trace_id=5 func=__vf_ip_route_input_rcu line=1999 msg="find a route: flag=80000000 gw-0.0.0.0 via root"
id=65308 trace_id=5 func=iprope_access_proxy_check line=458 msg="in-[port1], out-[], skb_flags-02000000, vid-0"
id=65308 trace_id=5 func=__iprope_check line=2391 msg="gnum-100017, check-000000004d58f73b"
id=65308 trace_id=5 func=iprope_policy_group_check line=4886 msg="after check: ret-no-match, act-accept, flag-00000000, flag2-00000000"
id=65308 trace_id=5 func=__iprope_fwd_check line=801 msg="in-[port1], out-[VLAN2130], skb_flags-02000000, vid-0, app_id: 0, url_cat_id: 0"
id=65308 trace_id=5 func=__iprope_tree_check line=524 msg="gnum-100004, use int hash, slot=35, len=2"
id=65308 trace_id=5 func=__iprope_check_one_policy line=2128 msg="checked gnum-100004 policy-3, ret-no-match, act-accept"
id=65308 trace_id=5 func=__iprope_check_one_policy line=2128 msg="checked gnum-100004 policy-0, ret-matched, act-accept"
id=65308 trace_id=5 func=__iprope_user_identity_check line=1891 msg="ret-matched"
id=65308 trace_id=5 func=__iprope_check_one_policy line=2361 msg="policy-0 is matched, act-drop"
id=65308 trace_id=5 func=__iprope_fwd_check line=838 msg="after iprope_captive_check(): is_captive-0, ret-matched, act-drop, idx-0"
id=65308 trace_id=5 func=fw_local_in_handler line=616 msg="iprope_in_check() check failed on policy 0, drop"
Its dropped as no policy match found.
id=65308 trace_id=1 func=fw_local_in_handler line=616 msg="iprope_in_check() check failed on policy 0, drop"
Can you share output of below.
show full-configuration | grep 10.21.30.100 -f
FW2 # show full-configuration | grep 10.21.30.100 -f
config system interface
edit "VLAN2130"
set vdom "root"
set vrf 0
set mode static
set dhcp-relay-interface-select-method auto
set dhcp-relay-service disable
set ip 10.21.30.100 255.255.255.0 <---
set allowaccess ping
set fail-detect disable
set pptp-client disable
set arpforward enable
set broadcast-forward disable
set bfd global
set l2forward disable
set icmp-send-redirect enable
set icmp-accept-redirect enable
set reachable-time 30000
set vlanforward disable
set stpforward disable
set ips-sniffer-mode disable
set ident-accept disable
set ipmac disable
set subst disable
set substitute-dst-mac 00:00:00:00:00:00
set status up
set netbios-forward disable
set wins-ip 0.0.0.0
set type vlan
set netflow-sampler disable
set sflow-sampler disable
set src-check enable
set sample-rate 2000
set polling-interval 20
set sample-direction both
set explicit-web-proxy disable
set explicit-ftp-proxy disable
set proxy-captive-portal disable
set tcp-mss 0
set inbandwidth 0
set outbandwidth 0
set egress-shaping-profile ''
set ingress-shaping-profile ''
set spillover-threshold 0
set ingress-spillover-threshold 0
set weight 0
set external disable
set vlan-protocol 8021q
set description ''
set alias ''
set security-mode none
set ike-saml-server ''
set device-identification enable
set device-user-identification enable
set estimated-upstream-bandwidth 0
set estimated-downstream-bandwidth 0
set measured-upstream-bandwidth 0
set measured-downstream-bandwidth 0
set bandwidth-measure-time 0
set monitor-bandwidth disable
set vrrp-virtual-mac disable
set role lan
set snmp-index 7
set secondary-IP disable
set preserve-session-route disable
set auto-auth-extension-device disable
set ap-discover enable
set ip-managed-by-fortiipam inherit-global
set switch-controller-igmp-snooping-proxy disable
set switch-controller-igmp-snooping-fast-leave disable
set switch-controller-feature none
set switch-controller-offload disable
set switch-controller-offload-gw disable
set color 0
set eap-supplicant disable
set default-purdue-level 3
config ipv6
set ip6-mode static
set nd-mode basic
set ip6-address ::/0
unset ip6-allowaccess
set icmp6-send-redirect enable
set ra-send-mtu enable
set ip6-reachable-time 0
set ip6-retrans-time 0
set ip6-hop-limit 0
set dhcp6-prefix-delegation disable
set dhcp6-information-request disable
set vrrp-virtual-mac6 disable
set vrip6_link_local ::
set ip6-send-adv disable
set autoconf disable
set dhcp6-relay-service disable
end
set priority 1
set dhcp-relay-source-ip 0.0.0.0
set dhcp-relay-circuit-id ''
set dhcp-client-identifier ''
set dhcp-renew-time 0
set idle-timeout 0
set disc-retry-timeout 1
set padt-retry-timeout 1
set dns-server-override enable
set dns-server-protocol cleartext
set wccp disable
set drop-overlapped-fragment disable
set drop-fragment disable
set interface "port1"
set mtu-override disable
set vlanid 2130
next
end
Seems like a licensing issue, as both are VM in a test environment I set the same license on both, created a new VM with same settings and a different license, and seems to work without issues..
FW1 # execute ping 10.21.30.100
PING 10.21.30.100 (10.21.30.100): 56 data bytes
64 bytes from 10.21.30.100: icmp_seq=0 ttl=255 time=4.8 ms
Connection lost. Press Enter to start a new session.
FW1 # execute ping 10.21.40.100
PING 10.21.40.100 (10.21.40.100): 56 data bytes
64 bytes from 10.21.40.100: icmp_seq=0 ttl=255 time=0.7 ms
FW3 # execute ping 10.11.30.100
PING 10.11.30.100 (10.11.30.100): 56 data bytes
64 bytes from 10.11.30.100: icmp_seq=0 ttl=255 time=1.0 ms
Connection lost. Press Enter to start a new session.
FW3 # execute ping 10.11.40.100
PING 10.11.40.100 (10.11.40.100): 56 data bytes
64 bytes from 10.11.40.100: icmp_seq=0 ttl=255 time=0.9 ms
Select Forum Responses to become Knowledge Articles!
Select the “Nominate to Knowledge Base” button to recommend a forum post to become a knowledge article.
User | Count |
---|---|
1641 | |
1069 | |
751 | |
443 | |
210 |
The Fortinet Security Fabric brings together the concepts of convergence and consolidation to provide comprehensive cybersecurity protection for all users, devices, and applications and across all network edges.
Copyright 2024 Fortinet, Inc. All Rights Reserved.
