Žydrūnas
New Contributor III

Can't edit, can't delete fortilink interface

Hello,



We are using FortiGate 61E v7.0.8 build0418.

And we want start using Forti switches but fortilink error stands in our way.

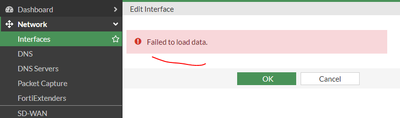

When i try to open default fortilink interface via GUI it gives me an error:

"Failed to load data."


We never used fortilink or fortiswitches so is doesn't have any references.


When i try to delete it:

Generic error

  • Switch interfaces can only be deleted from the switch interface table.
  • Command_cli_delete:6677 delete table entry fortilink unset oper error ret=-160.




Fortlink interface via GUI looks like so:





CLI:







 # config system interface

 # edit fortilink

 # show
config system interface
    edit "fortilink"
        set vdom "root"
        set ip 169.254.1.1 255.255.255.0
        set allowaccess ping fabric
        set type hard-switch
        set device-identification enable
        set lldp-transmission enable
        set role lan
        set snmp-index 7
    next
end







I know a workaround is to disable fortilink interface and create another fortilink dedicated interface for physical port and it works, but i really want to fix or delete that default fortilink interface to not leave any trash in configuration.

There should be way how to fix it.

1 Solution
Žydrūnas
New Contributor III

Ok guys, i managed to solve it with Forti support help.
This was corrupted settings in configuration file.
I had one spare same model same FW FortiGate on the shelf compared both configuration files with Notepad++.


And added missing lines in appropriate lines in config file:





    edit "fortilink"
        set vdom "root"
        set fortilink enable
        set ip 169.254.1.1 255.255.255.0
        set allowaccess ping fabric
        set type hard-switch
        set lldp-reception enable
        set lldp-transmission enable
        set snmp-index 7
    next











config system virtual-switch
	edit "fortilink"
        set physical-switch "sw0"
    next
end











config system ntp
    set ntpsync enable
    set server-mode enable
    set interface "fortilink"
end











config system dhcp server
	edit 1
        set ntp-service local
        set default-gateway 169.254.1.1
        set netmask 255.255.255.0
        set interface "fortilink"
        config ip-range
            edit 1
                set start-ip 169.254.1.2
                set end-ip 169.254.1.254
            next
        end
        set vci-match enable
        set vci-string "FortiSwitch" "FortiExtender"
    next







I hope it helps somebody experiencing same problem.

You configuration might be different so edit .conf  accordingly.

Also after editing and restoring configuration use command:



diag debug config-error-log read



To check for configuration errors. and fix them if found.
