CREATING BGP NEIGHBOR ON SDWAN

[aidnet]

hello guys i have this challenge on BGP neighbor for sdwan

[funkylicious]

Hi,

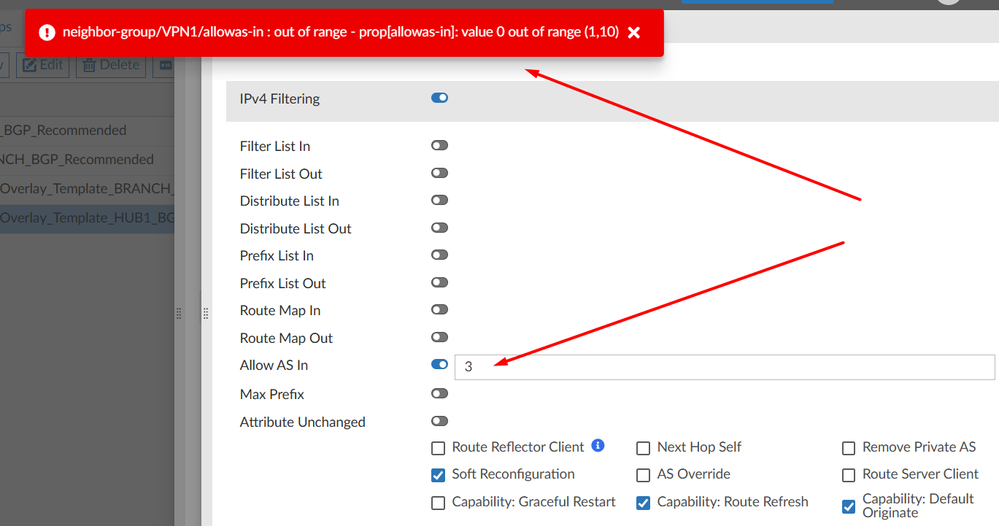

When you edit the BGP neighbor, there is an option under IPv4 Filtering, which I think you enabled called Allow AS In, which requires to insert a value between 1 and 10

https://docs.fortinet.com/document/fortigate/6.4.4/cli-reference/557620/config-router-bgp

allowas-in IPv4 The maximum number of occurrence of my AS number allowed.

integer  Minimum value: 1 Maximum value: 10

[aidnet]

yes i have put the value but still i gate the same error

[funkylicious]

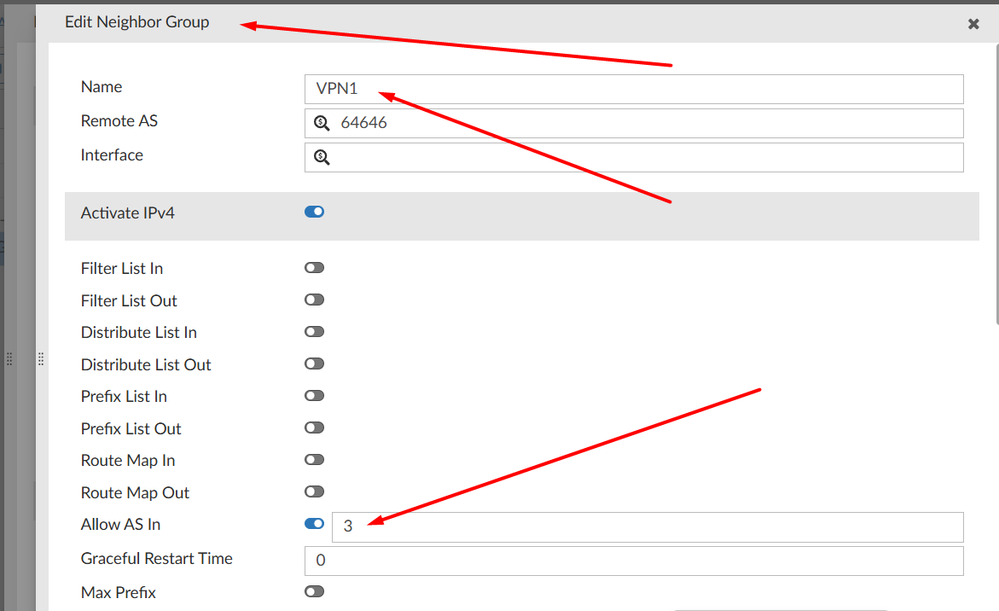

Sorry, it's for the Neighbor Group menu in the Template, not Neighbors.

You should have one called VPN1 and under it, Activate IPv4 > Allow AS IN

[aidnet]

i have changed the value but still i get the error

[funkylicious]

I am out of ideas on what issue you are facing.

I've tried myself creating a new template from scratch and worked.

Do you need allowas-in parameter to be enabled, cuz I would try to disable it and see if works, then enabling it back.

[aidnet]

no i do not want it to be enable and i have turned off but still i get the same eror

[aidnet]

i have deleted and created new but same error

[smkml]

Hi @aidnet ,

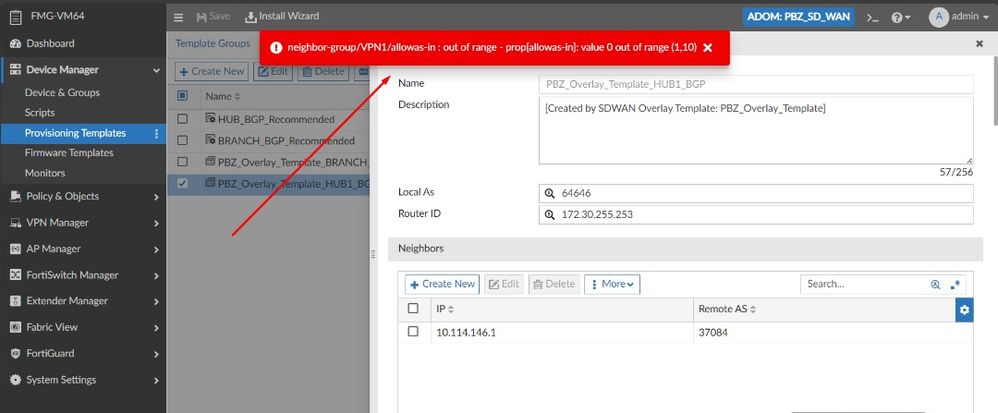

Kindly note on the error that mentioned where need to add the value. From the latest error I can see it pointed out to neighbour-group > VPN1 > allowas-in-vpn4, and probably pointed out in ipv6 too.

 

[funkylicious · Accepted solution]

hi @smkml , what version of FMG is that ? I cannot see in FMG 7.2.4 that option under Advanced Options.
