All devices not Get IP - Fortigate 30E

Hi All

I have issue one of our Firewalls, All the devices that connected to Firewall cant get an IP address i check the DHCP Server is working and change the port to LAN 2 or LAN3 nothing change with me.



Even if i give any device a Static IP its can't access to internet and i got No Internet.



The firewall don't have a lot configuration we just do a VPN Tunnel and no VLANs its a Flat Netwrok.



#Fortigate



3 REPLIES 3
funkylicious
SuperUser
SuperUser

can you share the configuration with us ?

show system interface

show system dhcp server

"jack of all trades, master of none"
"jack of all trades, master of none"
Mugiwara10


@funkylicious wrote:

can you share the configuration with us ?

show system interface

show system dhcp server

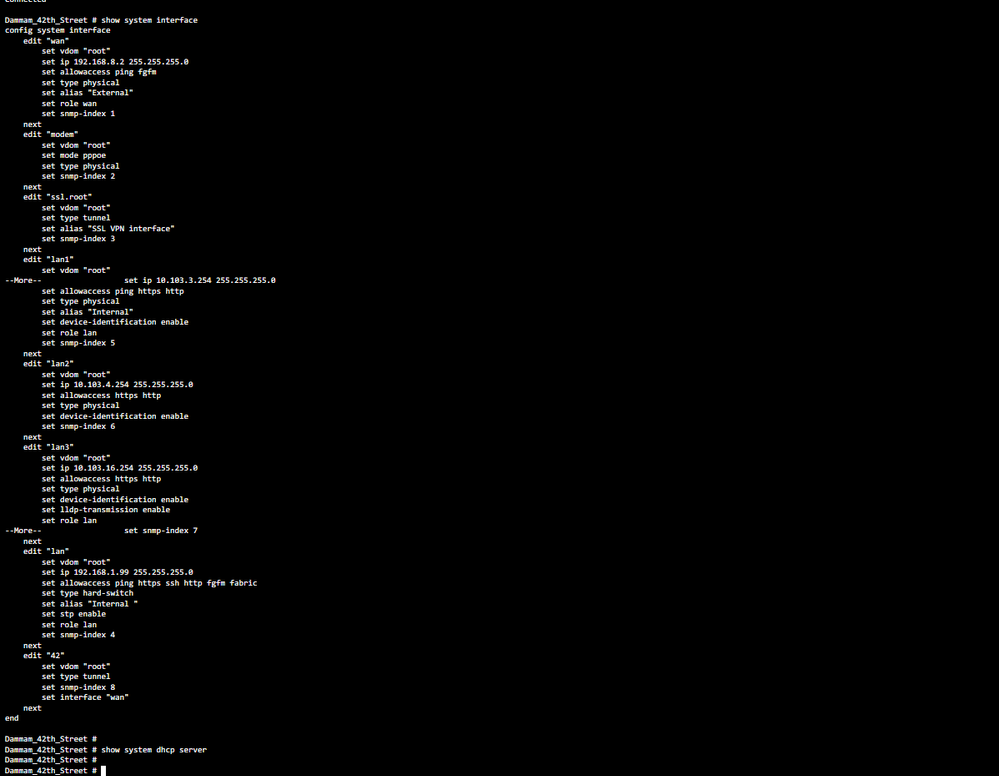

Screenshot 2025-02-18 160647.png

funkylicious

based on this output, lan2 - 10.103.4.254/24 and lan3 - 10.103.16.254/24 are configured on the FGT.

you should have firewall policies with those source interface towards the interface that ensure Internet access, i assume wan interface ?



also, the FGT isnt configured to be a DHCP server so in your network who should assign ip addresses to the devices ?

"jack of all trades, master of none"
"jack of all trades, master of none"
