Activating 7.2.4 VM Evaluation "Error 60" Invalid product model
Hi,
I wanted to test 7.2.4 VM on ESXI.
For my current and wanted setup, i wanted to add a NIC using PCIE passthrough of ESXI to the VM i downloaded, because i wanted to use a VLAN on my Nic so that i can get PPPOE. I Have my SFP in that NIC. I Got my PPPOE config to work using the CLI, so i currently can ping fortiguard servers or any other outside destinations using the execute ping command.
When i go execute vm-licenses
I get : 60 - Failed to request forticare license. Failed to download VM license.
But when i am using Diagnose hardware sysinfo vm full
i get
Valid : 0
Code : 202,
Status : 3
If i do it from the GUI i get a message bottom right which says : "Licence invalid product model"
My guess is because i kind of tempered with the VM adding a passed through nic but i hoped i was wrong, confirmed, or that it would be made possible.
My current number of physical interfaces is 2, i do respect the CPU and ram limitation (even tried lowering the ram to 1536 in case pcie did something). and i have 1 more logical interface which is my vlan, i'm unsure if it counts though, and i've let the default ssl.root and other .root interfaces because i doubt they'd count when activating..
Support directed me to the community forum because they wont support evaluations even though i'm a partner, so i guess no one is going to tell me : so yeah i've found your request in fg servers for activation and its bogus because of "...".
If anyone can help... i'd be pretty happy, next step i'd rather not take is bridge my isp's router and forget about passing through the NIC but that would require me to do some re-wiring and i'm happy not using their router at all..
Solved! Go to Solution.
- Labels:
-
FortiGate
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content

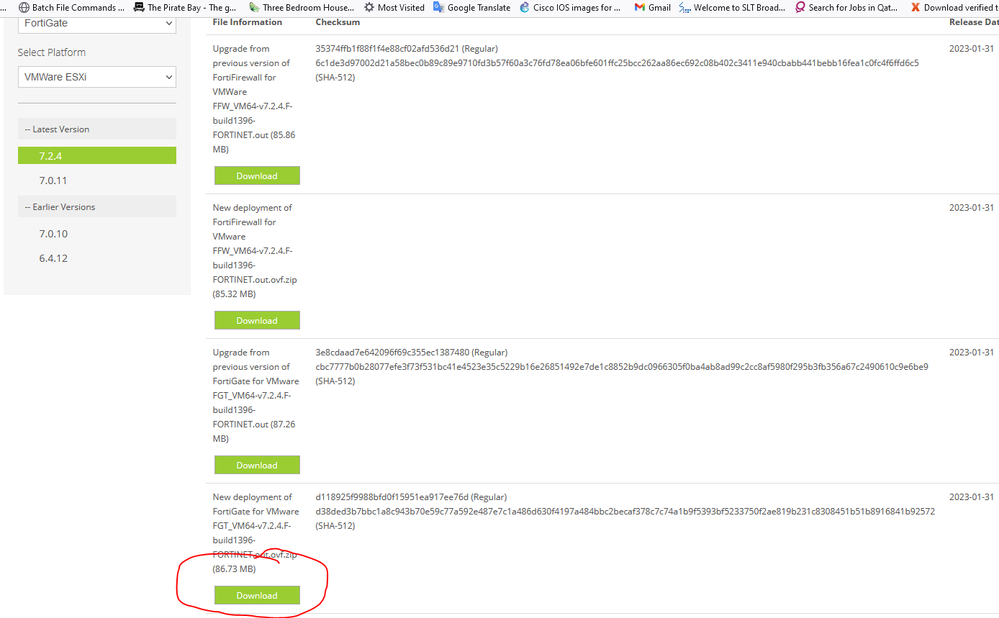

Allright, on the fortigate download page for the VM you have two options, if you read quick, like everyone does, the poor desing of the download page will let you download fortifirewall, which cannot be activated, if you scroll lower, you'll get the product for which you clicked on in the precedent page, which is fortigate and can be activated for eval.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
I have the same issue
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Are you trying to install it with pppoe too? I think I'll try to activate tonight putting it in DHCP under my pppoe router and see how it goes
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Small update : I've tried changing fortigiard connection from https to UDP, didn't work. I've removed my passthrough NIC and only configured my pppoe vlan, still the same result. I ping fortigiard servers but I get invalid model. Also Fortinet won't help because evaluation product is not supported. Good luck testing the products if you can't get it to activate and get no support for it. I guess they want me to ask my boss to get me a NFR though I thought a VM would be a good lab, but it's kinda restricted I guess.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
same issue here also.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Same problem here.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Allright, on the fortigate download page for the VM you have two options, if you read quick, like everyone does, the poor desing of the download page will let you download fortifirewall, which cannot be activated, if you scroll lower, you'll get the product for which you clicked on in the precedent page, which is fortigate and can be activated for eval.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Hi,
This is correct answer - today I download correct image and everything work as good as it supposed to do.
Thanks!
Created on 04-26-2023 11:48 AM Edited on 04-26-2023 11:51 AM
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Hi everyone , Frankfrank is right. me too had done same mistake and re corrected my mistake after reading his answer.
Thank you so much frank..
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Thank you for sharing this useful, information.
