Technical Tip: How to perform a search and replace in HTML Body text

[goliver]

Description

When implementing a FortiWEB as a proxy, there can be a need to replace text in the HTML body so that the HTML from the FortiWEB is presented correctly to the user.

For example, when offloading on the FortiWEB, the server can often return the URL in the form HTTP rather than HTTPS in the HTML as the FortiWeb is connected as HTTP.

Scope

FortiWeb.

Solution

The following steps can be used to enable a rewrite of the HTML body text from http to https:

1. Configure the maximum of cache for the FortiWEB to be able to manipulate the text from the back-end server.

config system advanced

  set max-cache-size 1024

end

2. Set up an uncompress rule to enforce that the HTML is received as text and not compressed.  (A common reason why the text is not detected and changed).

config waf web-protection-profile inline-protection

  edit "rewrite"

     set http-session-management enable

     [deleted ....]

  set file-compress-rule CompressZ

  set file-uncompress-rule UnCompressZ

next

end

Check the HTML text is readable with the command:

diag network sniffer <port> ....

3. Create a URL rewrite rule to have a regex to detect the 'http://' and replace it with the 'https://'.

config waf url-rewrite url-rewrite-rule

  edit "rewrite"

    set location http://

    set body_replace https://

    set action http-body-rewrite

    config  match-condition

      edit 1

      set object http-body

      set reg-exp "http:\\/\\/"

      set protocol-filter enable

      set content-type-filter enable

      set content-type-set text/html text/plain text/javascript application/xml(or)text/xml application/javascript application/soap+xml application/x-javascript application/json application/rss+xml

     next

    end

  next

end

4. Create a URL Rewrite Policy and assign the Rule.

config waf url-rewrite url-rewrite-policy

  edit "rewrite"

    config  rule

      edit 1

        set url-rewrite-rule-name rewrite

      next

    end

  next

end

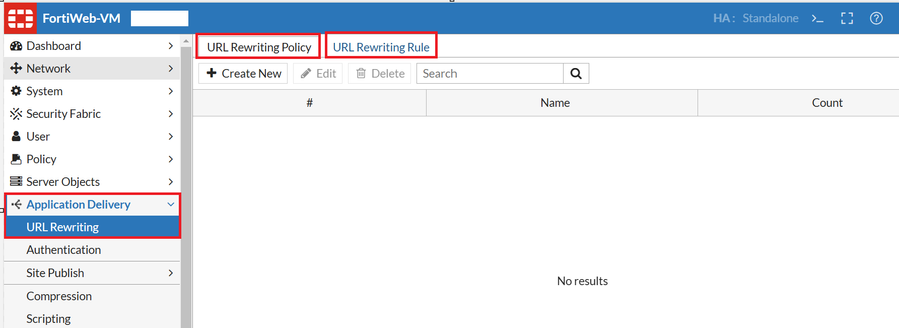

One can also configure URL rewrite rule and policy from GUI as below:

5. Assign the URL Rewrite Policy to the Web Protection Profile and then to the Server Policy.

Note:

When testing the problem it appears not to work because of the Cache of the Browser.
