Article Id 319470
Description This article describes how to apply SNI Policy with Server Policy in order to support multiple server certificates in True Transparent Mode.
Scope FortiWeb v7.2.
Solution

In True Transparent Mode:

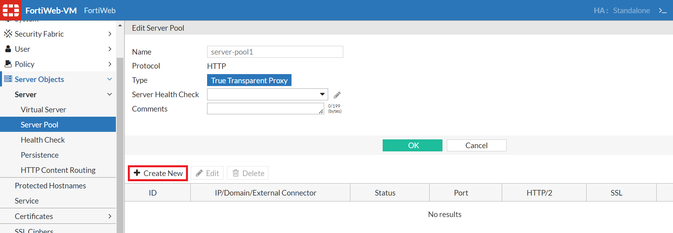

  1. Go to Server Objects -> Server -> Server Pool -> Select 'Create New' and Select 'OK'.







  1. Select 'Create New' in order to create a new Server Pool Rule.

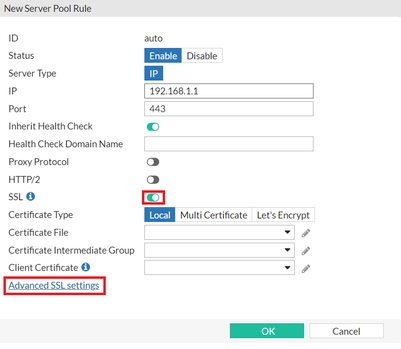

  1. Enable 'SSL'. 'Advanced SSL settings' appears.




  1. Select 'Advanced SSL settings'.

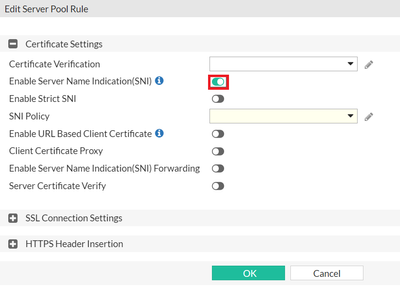

  2. Go To Certificate Settings -> Enable 'Enable Server Name Indication(SNI)'. SNI Policy appears.

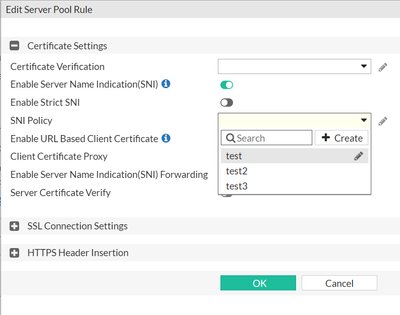

  1. Select 'SNI Policy'.




Note:

In True Transparent Mode, 'Advanced SSL settings' is in Server Pool Rule under Server Pool. On the other hand, in Reverse Proxy Mode, 'Advanced SSL settings' is in Server Policy.



Related article:

How to configure SNI policy and apply it with Server Policy in Reverse Proxy Mode.
