Technical Tip: Apply a FortiSwitch NAC policy based on specific Windows OS versions

[Anthony_E]

Description	This article describes how to apply FortiSwitch NAC policies with different effects based on different, specific Windows OS versions.
Scope	A FortiSwitch managed by FortiGate.

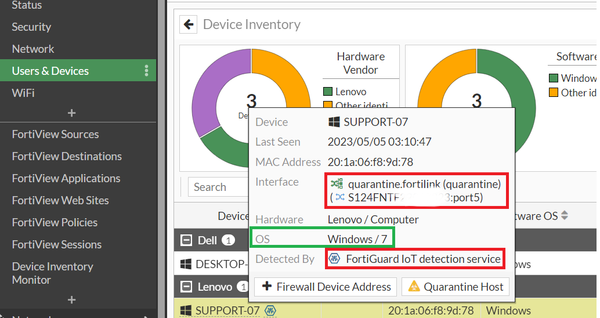

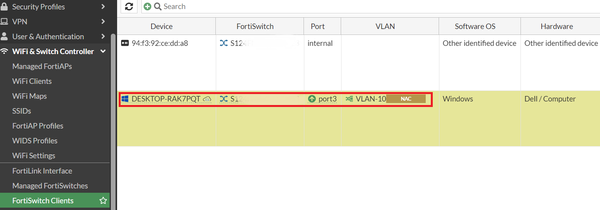

Solution	Consider a scenario in which the administrator intends to filter access to end devices on the basis of specific operating system versions when connected through FortiSwitch. For example, to restrict access from Windows 7 and allow every version of Windows 10. Similar options to restrict access based on specific OS versions can be found in SSL VPN Portals: This is possible to achieve by applying an NAC-based policy inside the SwitchController tab. This feature is only available when FortiSwitch is managed by FortiGate. It is necessary to enable device detection features available in the interfaces. To view the connected device, run the following command: diagnose user device list hosts   vd root/0  20:1a:06:f8:9d:78  gen 28  req HU/18     created 5074s  gen 17  seen 3328s  nac_segment gen 3     hardware vendor 'Lenovo'  src fortiguard  id 0  weight 136     type 'Home & Office'  src fortiguard  id 0  weight 136     family 'Computer'  src fortiguard  id 0  weight 136     os 'Windows'  src fortiguard  id 0  weight 136     software version '7'  src mwbs  id 3334  weight 50     host 'SUPPORT-07'  src mwbs   vd root/0  e0:db:55:c3:27:1f  gen 27  req HU/18     created 17936s  gen 1  seen 0s  nac_segment  gen 1     hardware vendor 'Dell'  src mac  id 0  weight 128     type 'Home & Office'  src fortiguard  id 0  weight 126     family 'Computer'  src fortiguard  id 0  weight 126     os 'Windows'  src dhcp  id 848  weight 128     software version '10 / 2016'  src mwbs  id 3331  weight 50     host 'DESKTOP-RAK7PQT'  src dhcp Use grep to query the software version of the connected end devices: diagnose user device list | grep software     software version '7'  src mwbs  id 3334  weight 50     software version '10 / 2016'  src mwbs  id 3331  weight 50 Deny access from any version of Windows 7: To restrict access from Windows 7, configure an NAC policy and apply quarantine VLAN to Windows 7 when detected by FortiGate (FortiGuard IoT detection service). Change the port mode from 'Static' to 'NAC'. 1) Configure NAC Policy: config user nac-policy     edit "Deny Win7"         set os "Windows"         set sw-version "7"          set switch-fortilink "fortilink"         set switch-mac-policy "Deny Win7"     next end 2) Apply NAC mode on the FortiSwitch Port: 3) View the results: To view Windows 7 and end device information, navigate to the 'FortiSwitch Client' and 'Users & Devices' tabs in the GUI. In the CLI: diagnose user device  list hosts   vd root/0  20:1a:06:f8:9d:78  gen 14  req 0     created 1742s  gen 8  seen 704s  quarantine  gen 4     hardware vendor 'Lenovo'  src fortiguard  id 0  weight 136     type 'Home & Office'  src fortiguard  id 0  weight 136     family 'Computer'  src fortiguard  id 0  weight 136     os 'Windows'  src fortiguard  id 0  weight 136     software version '7'  src mwbs  id 3334  weight 50     host 'SUPPORT-07'  src llmnr Allow access from any edition of Windows 10: To allow Windows 10, configure NAC policy and specify a version with '10*'. This will mean that any edition of Windows 10 will be accepted. Once again, change the port mode from 'Static' to 'NAC'. 1) Configure NAC Policy: config user nac-policy     edit "Accept any Edition of Win10"         set os "Windows"         set sw-version "10*"          set switch-fortilink "fortilink"         set switch-mac-policy "Accept any Edition of Win10"     next end 2) Apply NAC mode on the FortiSwitch Port: 3) View the results: View the detected clients in the 'FortiSwitch Client' and 'User and Devices' tabs in the GUI: In the CLI: diagnose user device  list hosts   vd root/0  e0:db:55:c3:27:1f  gen 27  req HU/18     created 17936s  gen 1  seen 10s  VLAN-10  gen 1     hardware vendor 'Dell'  src mac  id 0  weight 128     type 'Home & Office'  src fortiguard  id 0  weight 128     family 'Computer'  src fortiguard  id 0  weight 128     os 'Windows'  src dhcp  id 848  weight 128     software version '10 / 2016'  src mwbs  id 3331  weight 50     host 'DESKTOP-RAK7PQT'  src dhcp
