Troubleshooting Tip: 'Authentication failed, session timeout' in FortiSASE secure web gateway (SWG)

[jmc01]

Description	This article describes the reason for the firewall authentication failure and session timeout when using FortiSASE SWG.
Scope	FortiSASE.

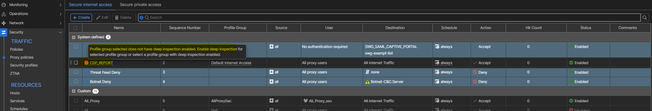

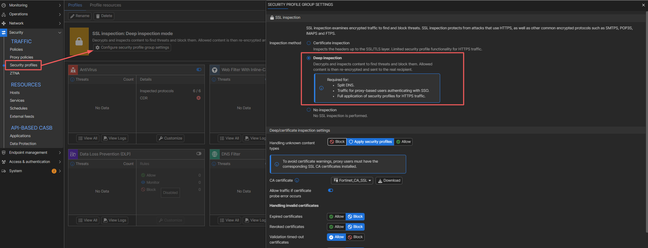

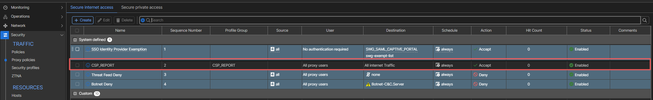

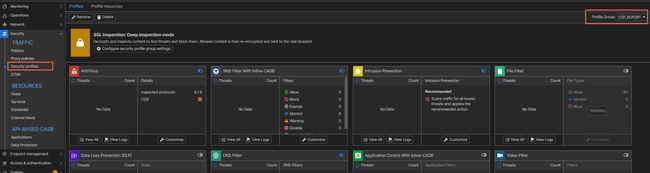

Solution	When using a CSP_REPORT policy with a security profile configured with no SSL inspection, the following error might occur: The SAML cookies authentication method relies on several factors, including: Cookie. Referer/Origin header. HTML refresh. Since these elements are not included in the Content Security Policy (CSP) report, FortiSASE has introduced a new firewall policy above the SAML policy to allow SAML authentication. For the policy to function correctly, a security profile with Deep Packet Inspection (DPI) or certificate inspection is required. Note: Due to a known issue reported under ID 1146409, a certificate inspection profile is required for the CSP_REPORT proxy policy instead of deep inspection when using Remote Browser Isolation (RBI). To assign a security profile with the Deep Packet Inspection, follow the steps below:  Create or modify a security profile on FortiSASE ->Security ->Security profiles > select it on the Profile group dropdown.  Enabled Deep inspection on the SSL inspection setting:   Assign the security profile to the CSP_REPORT proxypolicy on FortiSASE -> Security -> Proxy Policies >CSP_REPORT -> Edit -> Select the desired profile. Note: When using a security profile with Deep inspection disabled, this policy show an red warning as illustrated below:
