Technical Tip: The traffic matched to the Implicit Deny policy but accept

[duenlim]

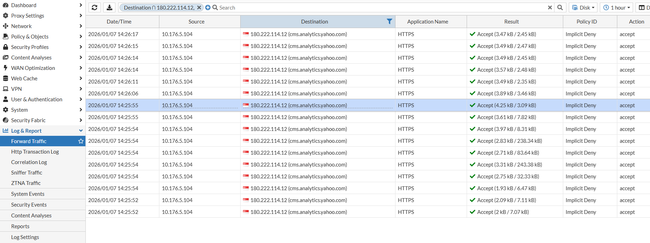

Description	This article describes how to troubleshoot when traffic is accepted/allowed, even matched to the Implicit Deny policy shown in the Forward Traffic log.
Scope	FortiProxy.
Solution	Performs the WAD debug filtered with the source address. The wad debug log showed it matched the Implicit Deny policy.  Example: diagnose debug reset diagnose wad filter src 10.176.5.104 diagnose wad debug enable category policy Debug messages will be on for 30 minutes. diagnose wad debug enable level verbose Debug messages will be on for 30 minutes. diagnose debug enable [I][p:977][s:3059][r:3708] __wad_http_conn_req_classify :4713 try to match HTTPS/HTTP/FTP/SSH/DOT with nport=443 [I][p:977][s:3059][r:3708] __wad_http_conn_req_classify :4744 port=443, proto=-1, protocol not matched. [I][p:977][s:3059][r:3708] wad_http_req_proc_policy :10193 policy result:vf_id=0:0 sec_profile=0x7f9ce35ed158 set_cookie=0 [I][p:977][s:3060][r:3710] wad_fast_match_is_enable :4111 fast matching is enabled [I][p:977][s:3060][r:3710] __wad_fw_policy_match_user :5940 matched cached grp:NA [V][p:977][s:3060][r:3710] wad_http_req_policy_notify :10899 notify policy match: req=0x7f9ce2d271c8 status=1 pid=977. [I][p:977][s:3060][r:3710] wad_http_req_policy_set :10607 match policy-id=0(pol_ctx:mxhcf|Ad|7?|=d) vd=0(ses_ctx:x|Phx|Mde|Hh|C|A7|O) (10.176.5.104:52847@4 -> 180.222.114.12:443@3) -> It matched the Implicit Deny Policy. Make sure the setting 'sec-default-action' is set to 'deny' in Web Explicit Proxy configuration. The reason why the traffic is accepted is that 'sec-default-action' is set to 'accept'.  config web-proxy explicit-proxy     edit "web-proxy"         set status enable         set interface "LAN"         set http-incoming-port 8080         set https-incoming-port 8080         set sec-default-action accept -> Accept or deny explicit web proxy session when no web proxy firewall policy exists (Default is Deny).
