Technical Tip: NTLM Authentication with an alternative UPN suffix

Description

This article describes how to configure LDAP Setting on FortiProxy when LDAP has an alternative UPN suffix.
Scope FortiProxy.
Solution

If there is an alternative UPN configured on the LDAP Server, the existing user that uses the new suffix is not able to authenticate successfully.

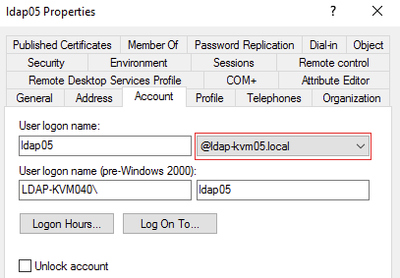

  1. Before:




 

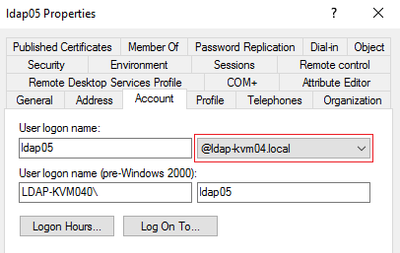

  1.  After:




 

  1.  Log Output:






Add the following on the existing LDAP settings:



config user ldap
    edit "LDAP"
        set account-key-processing strip
        set account-key-name "sAMAccountName"
    next
end



Result:




 

 For these changes, FortiProxy will strip the domain string from the UPN.



Related article:

Technical Tip: Strip domain strings from a UPN in Kerberos.
