Technical Tip: Forwarding specific URLs only to upstream Proxy in Proxy Chain setup

[sfernando]

Description	This article describes how to divert selected URLs to an upstream proxy (it can be any 3rd party Proxy) in Proxy chain setup.
Scope	FortiProxy, Proxy chaining.

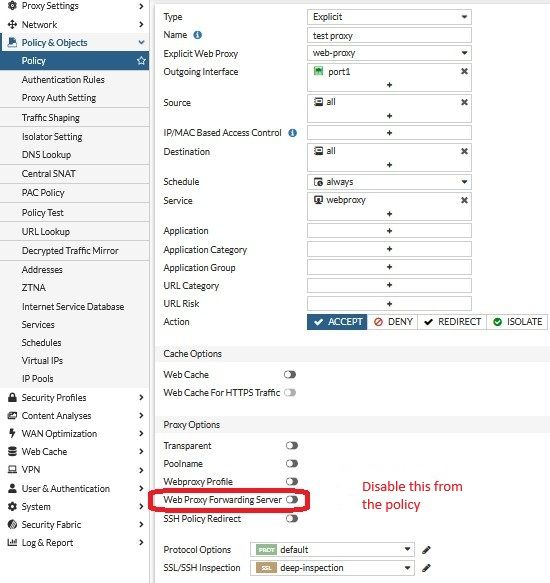

Solution	In an enterprise environment, it is common to use proxy chaining to secure the network and for other purposes. Configuring Proxy chaining on Forti Proxy can be done from the below document where the upstream proxy can be any 3rd party proxy: Proxy chaining It can also be a requirement to send specific URLs or specific traffic to the upstream proxy. Normally, it is required to configure a forwarding server and include the forwarding proxy details on the proxy policy. When it is required only to send specific traffic to the upstream proxy, below configuration can be done. Remove the forwarding server configuration from the proxy policy to avoid sending all the traffic to the upstream proxy. config firewall policy    edit 1       set type explicit-web       set name "test proxy"       set uuid 7cac8578-3f61-51f0-9bed-1a8f308314c8       set dstintf "port1"       set srcaddr "all"       set dstaddr "all"       set action accept       set schedule "always"       set service "webproxy"       set explicit-web-proxy "web-proxy"       set utm-status enable       set logtraffic all       set log-http-transaction enable       set ssl-ssh-profile "deep-inspection"       set av-profile "default"       set webfilter-profile "default"       set ips-sensor "default"       set application-list "default"    next end Add a Server URL with the forwarding server details, where the forwarding server is the upstream proxy. It is also possible to add multiple URLs based on the requirement. config web-proxy url-match    edit "Youtube"       set explicit-web-proxy "web-proxy"       set url-pattern "www.youtube.com"       set forward-server "Sydlab Squid server"    next end Forwarding Server: config web-proxy forward-server    edit "Sydlab Squid server"       set ip 10.56.140.27       set healthcheck enable    next end Validation from logs:
