Refer to the diagram below, which shows the enterprise LAN is protected by a FortiGate, and FortiPAM is behind the FortiGate. Users on the internet need to access the targets, as it is first required to connect to FortiPAM.
To configure the above setup, the following steps need to be followed.
FortiPAM uses port 1444 to access targets.
10.56.244.59 is a public IP as per the diagram.
VLAN between FortiGate and FortiPAM is 3
VLAN between FortiPAM and Target is 49
Targets are directly connected to FortiPAM; hence, no gateways are configured.
- Configure a VIP on the FortiGate; either the interface IP or any other IP in the Subnet of the Interface IP can be used. The internet user will connect to this IP address to access FortiPAM.
config firewall vip
edit "test1"
set uuid acf19156-83a4-51f0-0dfd-6e2d5c85e333
set extip 10.56.244.59
set mappedip "10.3.0.64"
set extintf "any"
set portforward enable
set extport 443-2000
set mappedport 443-2000
set portmapping-type m-to-n
next
end
Note 1: The port range should cover the ports used to access the target from the FortiPAM.
-
Configure the firewall policy using the above-mentioned VIP on the FortiGate.
config firewall policy
edit 4
set name "Incoming to PAM"
set uuid b67ed8be-83a4-51f0-c819-55e08d886986
set srcintf "port2"
set dstintf "port3"
set action accept
set srcaddr "all"
set dstaddr "test1"
set schedule "always"
set service "ALL"
set inspection-mode proxy
set nat enable
next
end
-
On the FortiPAM, enable web proxy on the port connecting to the FortiGate.
Note 2: Currently, only one port on FortiPAM can have this enabled.
config system interface
edit "port3"
set ip 10.3.0.64 255.255.240.0
set allowaccess ping ssh
set type physical
set explicit-web-proxy enable
set snmp-index 3
next
end
-
Configure the web-proxy port on the FortiPAM.
config web-proxy explicit-proxy
edit "web-proxy"
set status enable
set interface "any"
set http-incoming-port 1444 <-- This port needs to be covered in Note 1.
next
end
-
Configure Web-Proxy Global on FortiPAM.
config web-proxy global
set proxy-fqdn "10.56.244.59" <-- This IP should be the same as the one used in the VIP in FortiGate.
end
Note 3: If using an FQDN that is resolved to the public IP of the VIP, the above IP can be replaced with it.
-

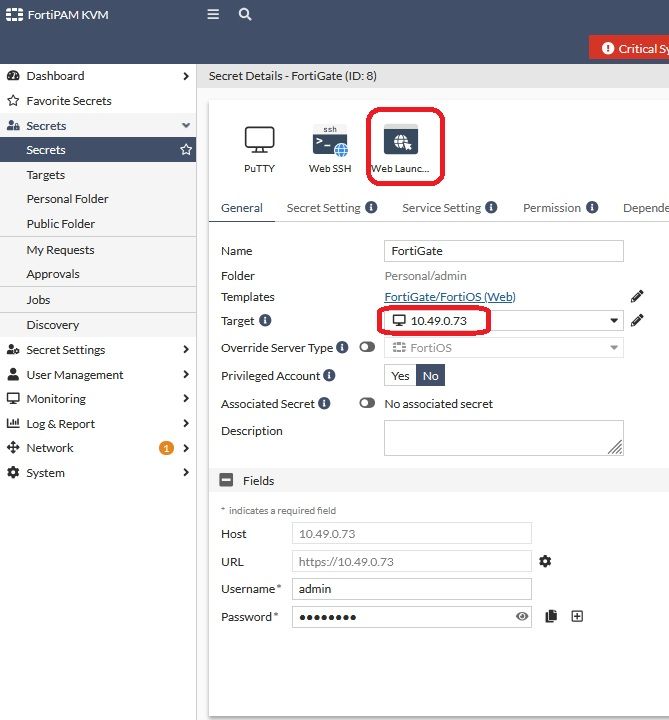

It is possible to access the Targets as follows.
|
