Technical Tip: How to install or upload an older o...

FortiNAC

NOTE: FortiNAC is now named FortiNAC-F. For post-9.4 articles, see FortiNAC-F. FortiNAC is a zero-trust network access solution that provides users with enhanced visibility into the Internet of Things (IoT) devices on their enterprise networks.

Article Id 219293

Description

This article describes how to install/upload an old FortiNAC Agent package to FortiNAC.

Scope

FortiNAC, Legacy Agent Package, New Agent Package Persistent Agent, Dissolvable Agent.

Solution

The Persistent Agent directory is: /bsc/campusMgr/agent/packages/.

Download the WINSCP and scp to FortiNAC, then go to: /bsc/campusMgr/agent/packages/ directory.

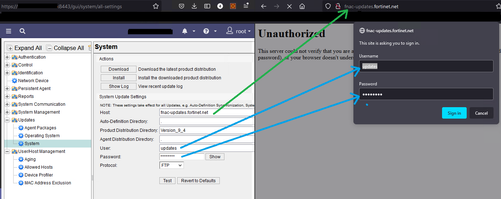

Log in to the 'fnac-updates.fortinet.net' portal using the FortiNAC credentials that are available under System -> Settings -> Updates -> System.

System settings.png

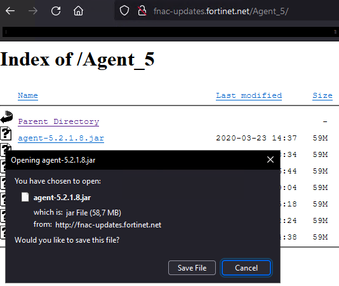

Download any package needed (for example agent-5.2.1.8.jar).
In the WINSCP, locate the agent on the Windows device then drag and drop it to the FortiNAC package directory.
Then go to Agent Packages under System -> Settings -> Updates.

Agent Package.PNG

1062
