| Description | This article describes how to configure user acknowledgement for VLAN Switching with Persistent Agent so the user can accept or deny changing the VLAN. |
| Scope |
FortiNAC-F 7.4, 7.6. Persistent Agent 9.4.4 or 10.7.2 or greater. |
| Solution |

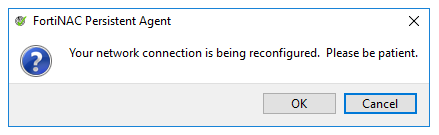

In some environments it might be required to get user acknowledgment before switching their VLAN. The user would get a notification similar to the following:

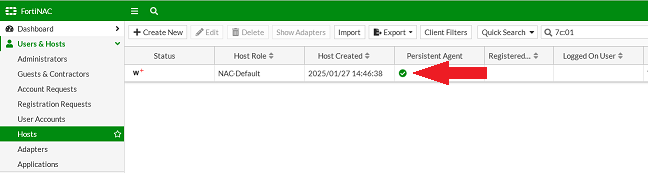

First make sure the Persistent Agent is installed on the host and can communicate with the FortiNAC. Go to 'Users & Hosts -> Hosts' and look for the green checkmark under the 'Persistent Agent' column:
Enable the 'Enable VlanSwitching User Acknowledgement' option under 'System -> Settings -> Persistent Agent -> Properties':
execute enter-shell globaloptiontool -name persistentAgentSecMgmt.enableReceipt -set true
To disable it from the CLI:
execute enter-shell globaloptiontool -name persistentAgentSecMgmt.enableReceipt -set false
Note: If the user does not select any option, the VLAN will be switched after the time defined under the 'Acknowledgement timeout' field.
Related documents: Properties - FortiNAC-F administration guide Persistent agent deployment and configuration overview - FortiNAC-F administration guide |
