Technical Tip: How to configure FortiNAC to set host role by using MSCHAPv2 Machine Authentication

[scitlak]

Description	This article describes how to configure FortiNAC to retrieve the LDAP Group membership of a host by using MSCHAPv2 Machine based authentication and to set a host role depending on a host LDAP Group membership.
Scope	FortiNAC-F v7.6.

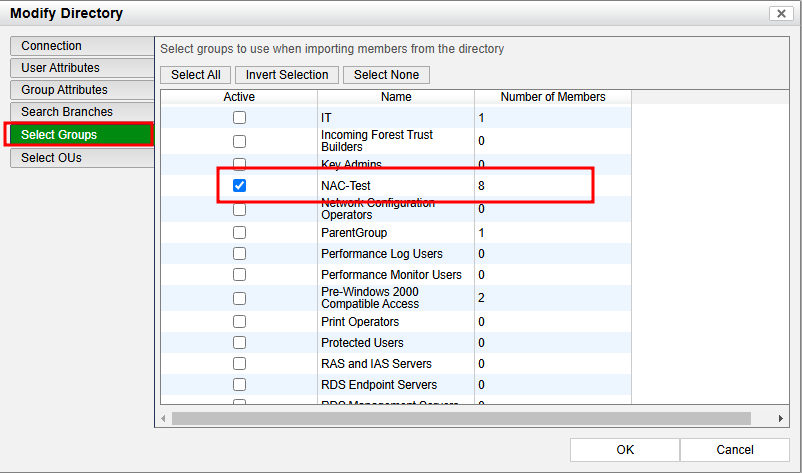

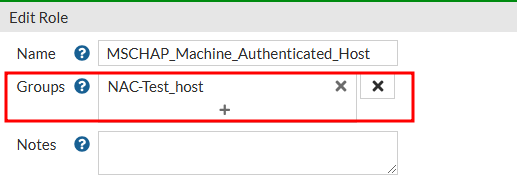

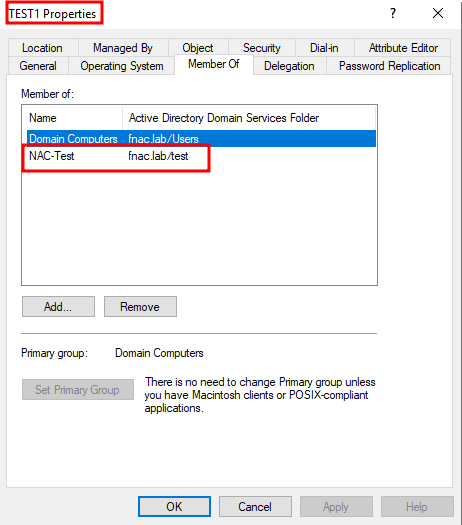

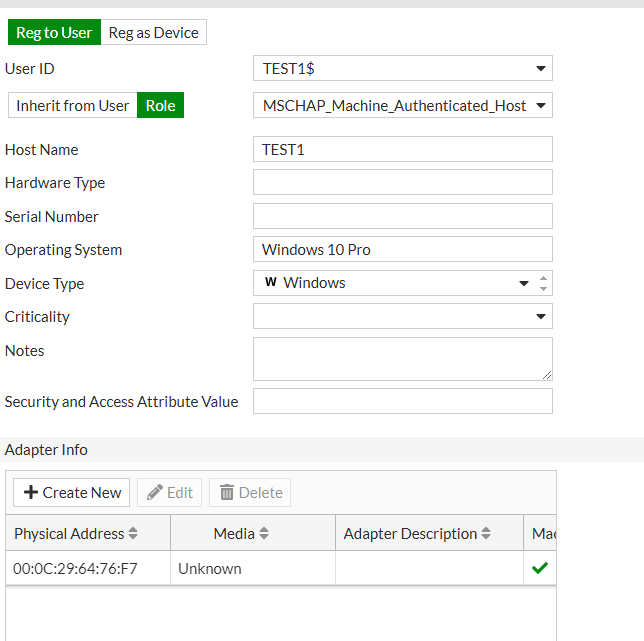

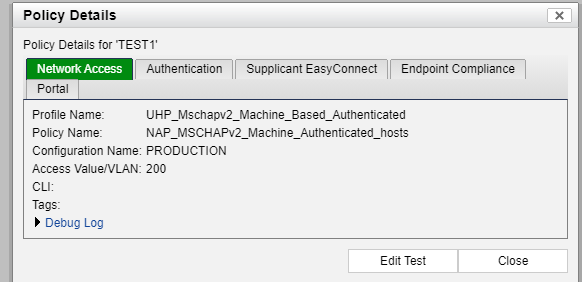

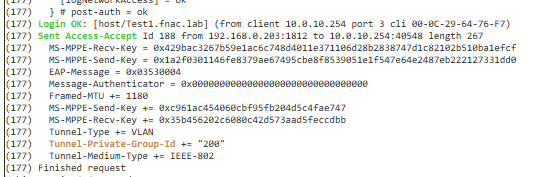

Solution	Set the host as a member of one LDAP security group. Select the LDAP security group in FortiNAC under System -> Settings -> Authentication -> LDAP. The FortiNAC -F 7.6 creates two groups for the LDAP group under Settings -> Groups. One of them will have a type host and the other one user. Create a Role under Policy & Objects -> Roles and add the LDAP retrieved group in Groups. Whenever the host performs an MSCHAPv2 machine-based authentication, FortiNAC will retrieve the LDAP group membership of the host and set the appropriate role. When a User Host Profile is created with the correct host Role criteria, the host matches the Network Access Policy and FortiNAC assigns the correct VLAN ID. Related articles: Technical Tip: Groups imported in FortiNAC does not show any Members listed Technical Tip: Leveraging Domain Group Membership of Client with EAP-TLS Computer-Based Authenticati...
