Troubleshooting Tip: Unable to make HA settings changes to manage the FortiGate HA cluster from FortiManager

[jasonhong]

Description	This article describes that it is not possible to make HA settings changes to manage the FortiGate HA cluster from FortiManager and how to troubleshoot it.
Scope	FortiManager.

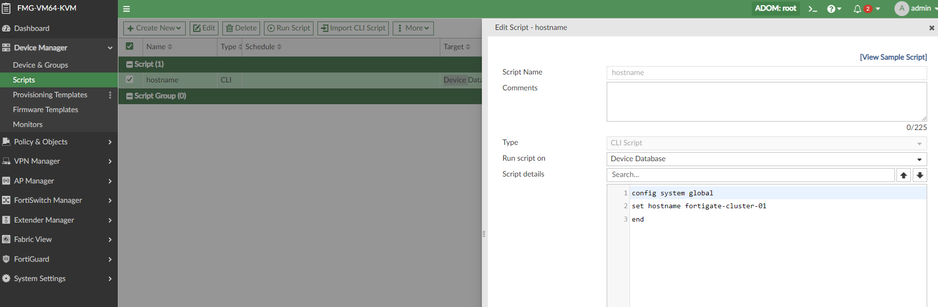

Solution	For this example, a FortiGate HA cluster is added into FortiManager and FortiManager can learn/retrieve the HA settings from the managed FortiGate HA Cluster. To change the managed device's hostname, a CLI script will be created with the following script details. config system global     set hostname fortigate-cluster-01 end However, the script will fail to run and errors out with the following output. Script hostname executed on the local db of Tiara-kvm06 failed. Reason: invalid value - [line 2] > set hostname fortigate-cluster-01 [HA configuration is not allowed to be changed in HA mode] The reason that no changes can be made to the HA settings is that FortiManager only learns (read-only) about the HA settings from the managed FortiGate HA cluster. FortiManager does not manage (read-write) the HA settings of the FortiGate HA cluster. Essentially, FortiManager only has read-only privileges when it comes to the managed device's HA settings. However, if a FortiGate HA cluster is created through the FortiManager model HA device, its HA configuration can be modified: by Adding a FortiGate HA cluster as offline model device and Configuring model HA cluster members.
