Description
This article describes how to troubleshoot when receiving an error that involves VPN Manager and SD-WAN configuration as per below:
Scope
FortiManager, FortiGate.
Solution
This issue occurs when the tunnel interface created initially by the VPN Manager is assigned to SD-WAN members.
Where by design this is not supported to use interface zone as SD-WAN member.

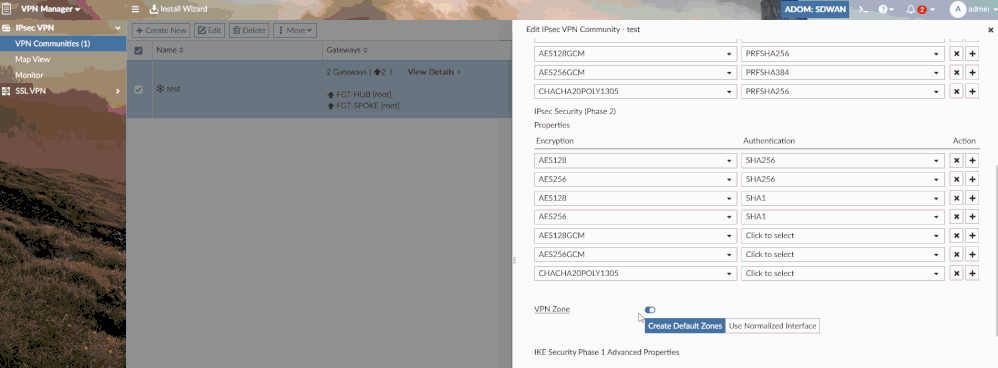

VPN Manager community using Hub and Spoke design:

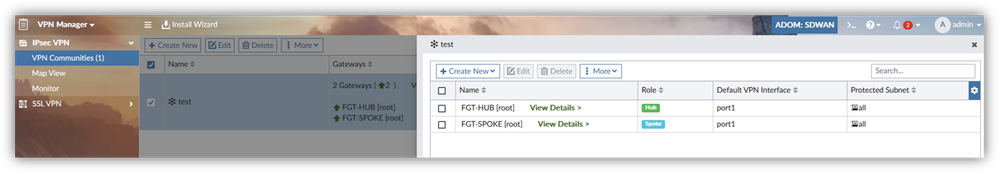

Phase 1 and Phase 2 tunnel interfaces are created:

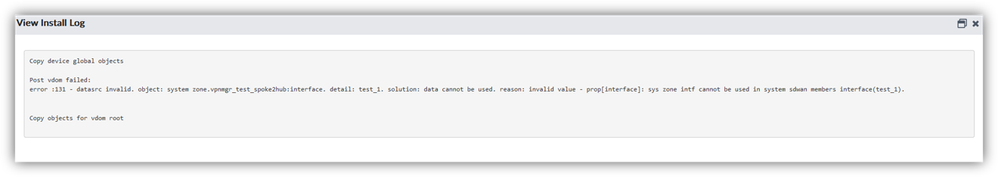

When installing the Policy Package level it will show failed with the below specific error:
Post vdom failed:
error :131 - datasrc invalid. object: system zone.vpnmgr_test_spoke2hub:interface. detail: test_1. solution: data cannot be used. reason: invalid value - prop[interface]: sys zone intf cannot be used in system sdwan members interface(test_1).

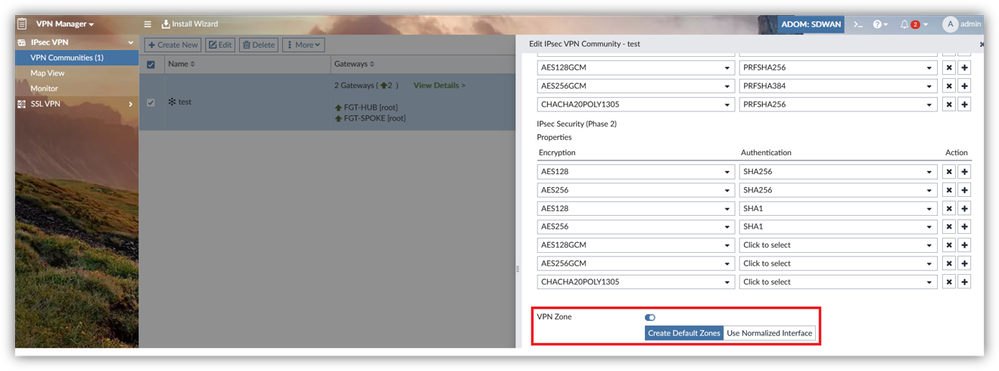

By design, this is not supported to use interface zones as SD-WAN members, where basically if enabled VPN Zone in the VPN Manager community will automatically create the interface zone.
Therefore it is necessary to disable it to remove the error.
