Technical Tip: FortiManager verifies the FGFM tunnel event logs

[WinterSnowYap]

Description	This article describes how to use FortiManager to verify the FGFM tunnel event logs.
Scope	FortiManager.

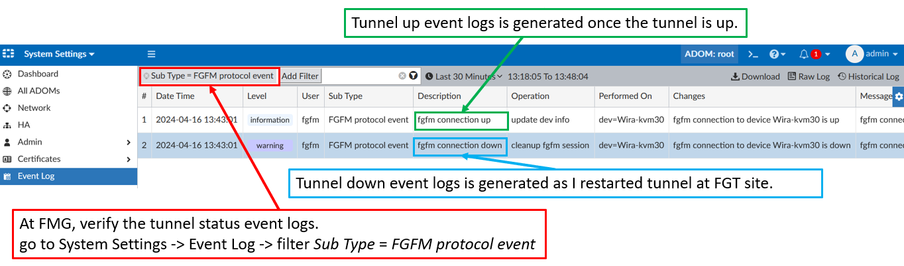

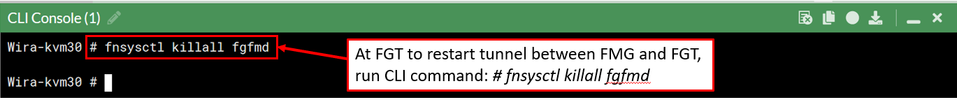

Solution	Below is the scenario: To generate an FGFM tunnel down event, I go to the FortiGate site to restart the FGFM tunnel.  From the FortiGate, restart the FGFM tunnel by running the CLI command: fnsysctl killall fgfmd From the FortiManager, verify the FGFM tunnel event log. Go to System Settings -> Event Log -> filter Sub Type = FGFM protocol event.
