| Solution |
- To fetch all revisions of a single device, the following API Request is used:
{
"id": 1,
"method": "exec",
"params": [
{
"data": {
"device": "<Device_Name>"
},
"url": "/deployment/get/device/revision"
}
],
"session": "{{session}}",
"verbose": 1
}

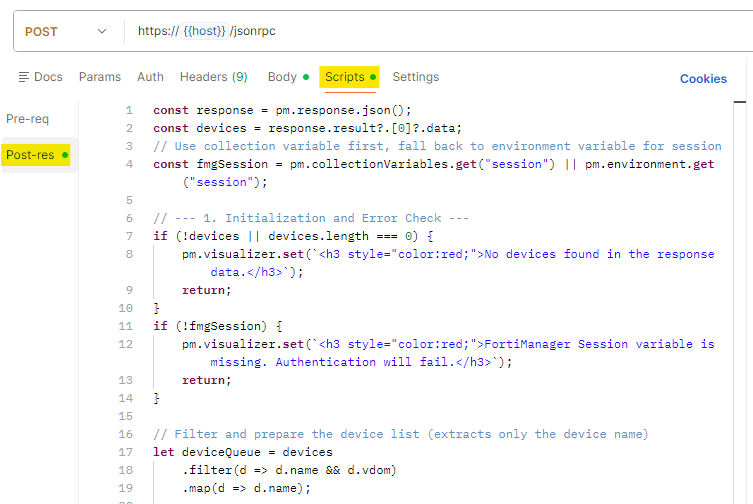

- Postman Scripts can be used to fetch the total number of all devices.
This script executes the entire workflow:
- Fetches the device list using the API Request below:
{
"method": "get",
"params": [
{
"url": "/dvmdb/device"
}
],
"session": "{{session}}",
"verbose": 1,
"id": 1
}
- Loops through each device, making a new asynchronous API call to fetch revision history.

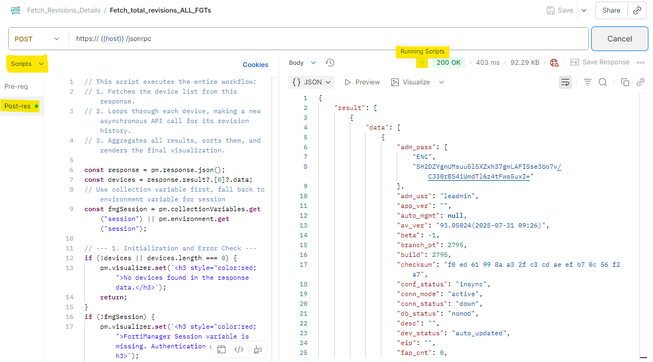

While the script is executing, Postman shows a blinking gray dot labeled Running scripts. When execution finishes, the dot disappears and the Visualization tab renders the final report.

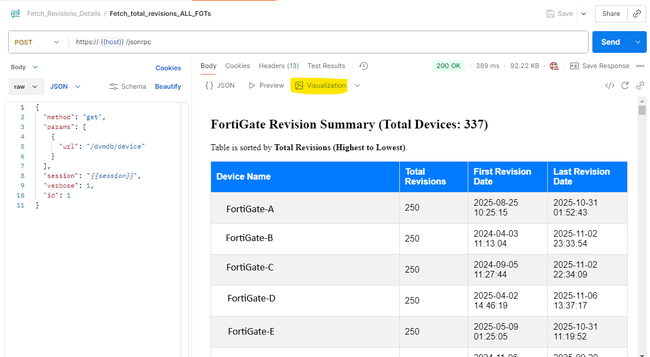

- Aggregates all results, sorts them, and renders the final output under the Visualization tab.
- The API collection can be imported into Postman (tested with v11.71.7) using the attached file.
- Under the 'Variables' tab of the collection, the following variables are required:
- host: IP address of FortiManager.
- ADMIN: FortiManager Admin user.
- PASSWORD: Admin user password.
