Technical Tip: DHCP server settings in FortiManager

[vraev]

Description

This article describes some information regarding the DHCP settings in the FortiManager menus.

Scope

FortiManager.

Solution

In FortiManager, the following settings can be found under:

1. Device Manager.
2. Policy & Objects.
3. FortiSwitch VLANs.
   Per device-mapping.

FortiSwitch VLAN settings are applied in order, and any subsequent configuration will override the previous one. When per-device mapping is used within a VLAN template, the device-specific values take precedence over the default FortiSwitch VLAN settings.

Device Manager:

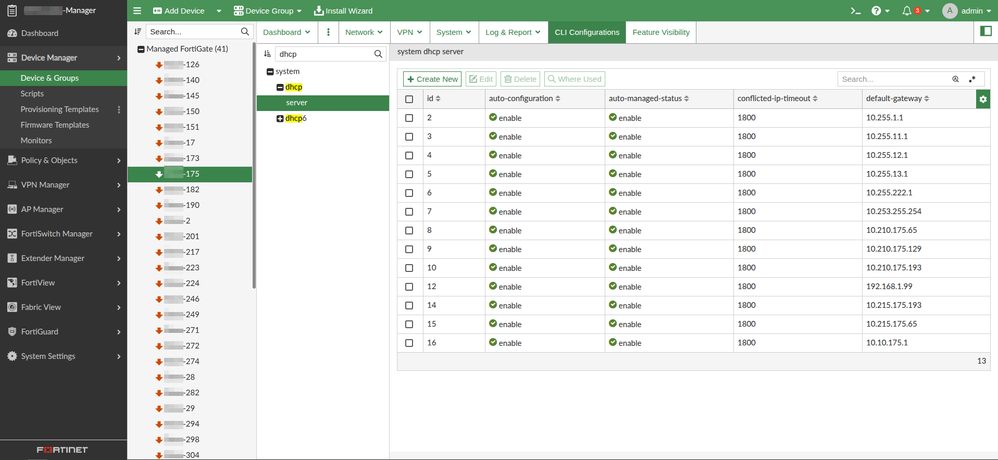

Device Manager -> Device & Groups -> Managed FortiGate -> FortiGate_name -> Network: Interfaces | CLI configuration.

Policy & Objects:

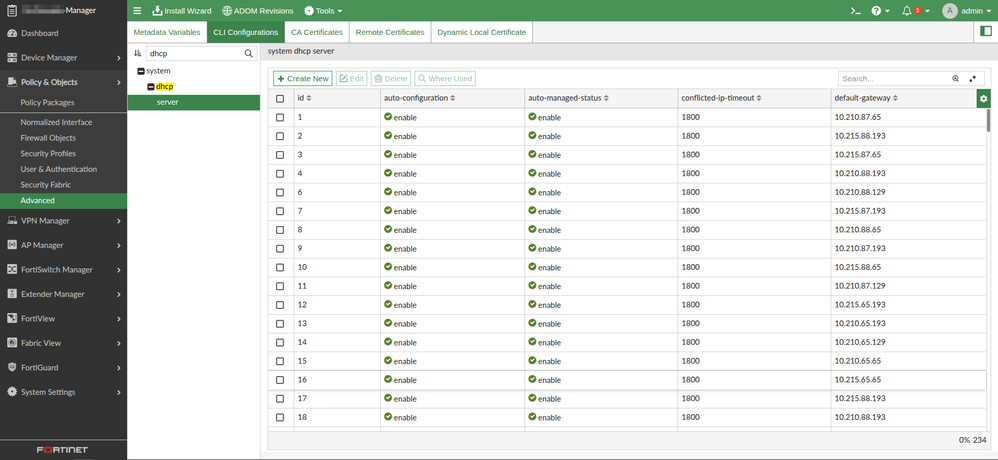

Policy & Objects -> Advanced -> CLI configuration -> System/ DHCP/ Server.

FortiSwitch Manager:

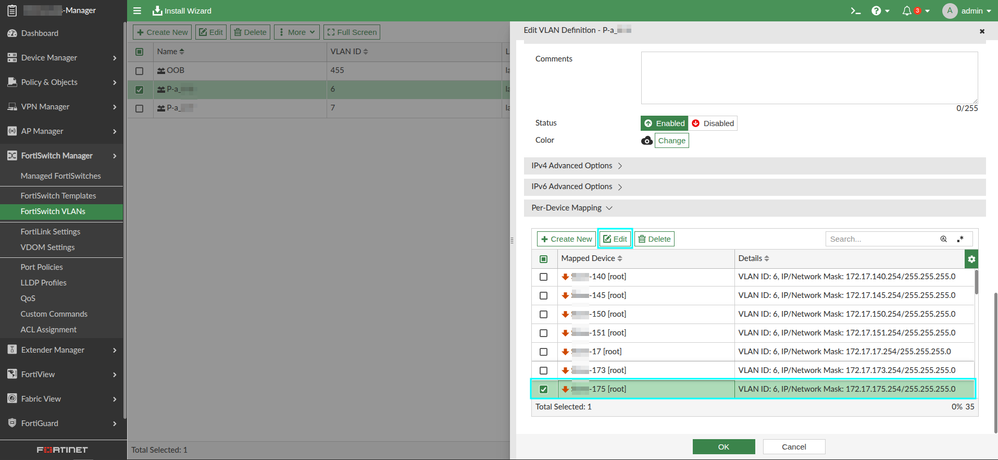

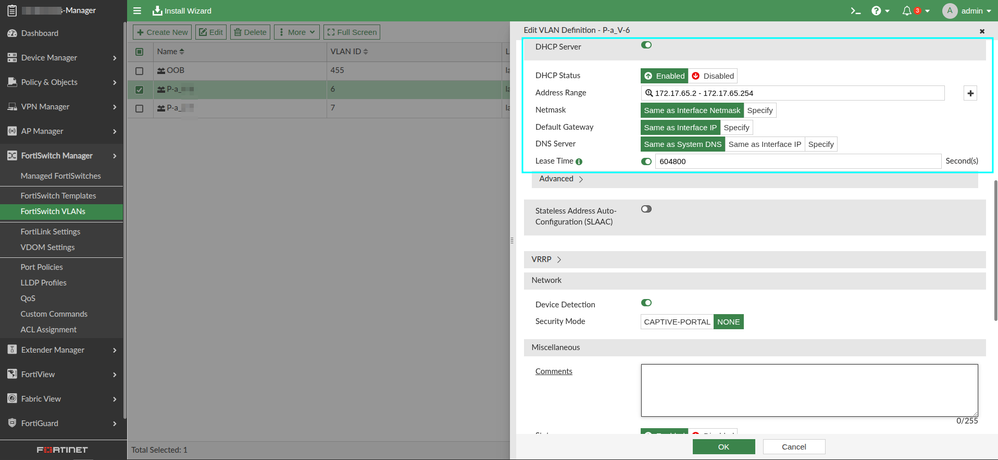

FortiSwitch Manager -> FortiSwitch VLANs -> VLAN_name -> Default | Per-device mapping.
