Technical Tip: MFA on FortiMail for webmail and admin login

[aaborehab]

Description	This article describes how to enable MFA for admin and webmail login using FortiMail and FortiAuthenticator (RADIUS).
Scope	FortiMail.

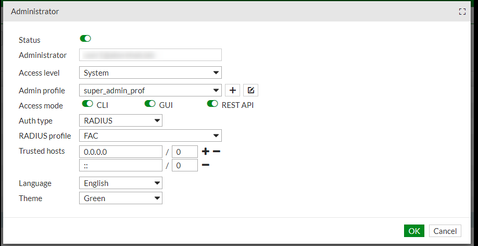

Solution	To enable MFA/OTP on FortiMail, it is necessary to have a RADIUS server integrated with FortiMail as an authentication server (in this example, FortiAuthenticator v6.4.6 is used): On FortiAuthenticator, adjust the radius policy for FortiMail to use password and OTP as follows:  Configure the method that the user will receive the OTP on FortiAuthenticator under the user's settings and allow the radius authentication: On FortiMail, it is necessary to create a RADIUS Auth profile as follows: To authenticate Webmail users, then the radius auth profile needs to be applied to the inbound recipient policy as follows: Then the token field will appear in the webmail login as follows: For the admin user, the admin needs to be created with the auth type RADIUS so the MFA can work: In some cases, to allow sufficient time to complete multi-factor authentication, it is necessary to increase the timeout value from 5 seconds (default) to 60 seconds. From the CLI: config system global     set remote-auth-timeout <timeout-factor_int> end Note: The information above applies to FortiMail on-premises. For FortiMail Cloud tenants, multi-factor authentication (MFA) is supported only for webmail users; MFA for admin users is not supported in the new FortiMail Cloud tenants; however, it remains supported for admin access in legacy cloud instances. New cloud: <hostname>.fortimailcloud.com Legacy cloud: gwxxxxx.fortimail.com
