Troubleshooting Tip: SD-WAN GUI does not show expected sessions based on the configured weight on SD-WAN members

[sfernando]

Description	This article describes the reasons why the SD-WAN GUI in FortiGate may not show the expected traffic distribution based on the configured weight on each members.
Scope	FortiGate SD-WAN.

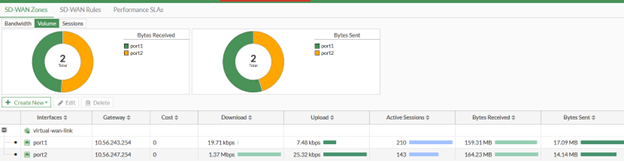

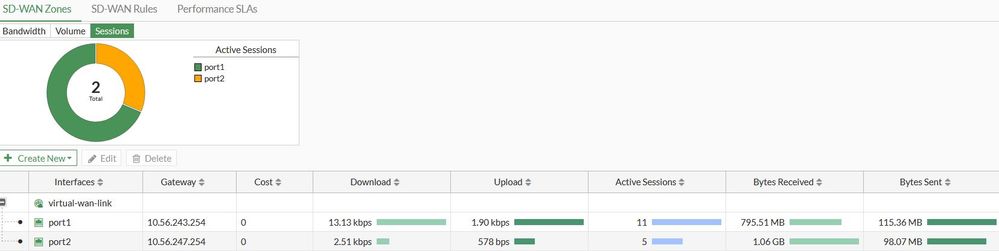

Solution	This article requires an understanding of several key facts about configuring weights on each member in SD-WAN. See Technical Tip: Configuring and understanding weight attributes in SD-WAN setup. The following is an example configuration of SD-WAN members set up with weight distribution for load balancing: config system sdwan     set status enable     set load-balance-mode weight-based         config zone             edit "virtual-wan-link"             next         end     config members         edit 1             set interface "port1"             set gateway 10.56.243.254             set weight 120         next         edit 2             set interface "port2"             set gateway 10.56.247.254             set weight 80         next    end When there are no SD-WAN rules configured, the session count in the SD-WAN GUI is very close to the weight ratio configured on the SD-WAN members, as shown below:   In this scenario, there is a number of SD-WAN rules configured as shown below, and they carry a considerable amount of traffic: config service     edit 1         set name "cnntraffic"         set src "all"         set internet-service enable         set internet-service-name "CNN-DNS" "CNN-FTP" "CNN-ICMP" "CNN-Inbound_Email" "CNN-LDAP" "CNN-            NetBIOS.Name.Service" "CNN-NetBIOS.Session.Service" "CNN-NTP" "CNN-Other" "CNN-Outbound_Email"          "CNN-RTMP" "CNN-SSH" "CNN-Web"         set priority-members 2         set priority-zone "virtual-wan-link"     next     edit 2         set name "googelvideo"         set dst "googlevideo"         set src "all"         set priority-members 2         set priority-zone "virtual-wan-link" The SD-WAN GUI will look like the following: Furthermore, there may be IPsec tunnels configured which are included in the SD-WAN rules. These will also further affect monitoring. In most cases, an SD-WAN rule selects one interface to send traffic to, based on the rule configuration. The result is an increase in the number of sessions and traffic volume for each link. In large organizations with a wide variety of traffic types and configurations, having an exact replica of the weight distribution in the SD-WAN GUI is not possible. Note: A bug was detected in FortiOS v7.4.8 where SD-WAN members display 0 active sessions in the FortiGate Web GUI, and the SD-WAN Monitor widget reflects the same status. The affected SD-WAN member uses a PPPoE interface. This is a cosmetic issue only and does not impact the actual functionality of the SD-WAN configuration on the FortiGate. Active session information remains visible via the CLI. This issue is fixed in FortiOS v7.4.11, v7.6.6 and later versions.
