This article describes how to resolve the issues with 'web filter block override' and 'invalid FortiGuard filtering override request'.
Scope
FortiGate.
Solution
Configure the FortiGate to use local/custom categories and/or to use FortiGuard categories.
The FortiGate uses some ports to communicate with FortiGuard to validate/verify each category.
Sometimes, the Internet browser shows a message like this:
'Web filter block override' / 'invalid FortiGuard filtering override request' is shown because the website is using a port configured in the FortiGate to connect with FortiGuard only for 'web rating override'.
These ports are as follows:
- Port 8008 is used by the FortiGate to authenticate with FortiGuard when a http override request occurs (FortiGuard web filter http override authentication).
- Port 8010 is used by the FortiGate to authenticate with FortiGuard when a https override request occurs (FortiGuard web filter https override authentication).
- Port 8015 is used by the FortiGate to authenticate with FortiGuard when a https override request occurs in flow mode (FortiGuard web filter https override authentication).
- Port 8020 is used by the FortiGate for FortiGuard web filter warning authentication.
The ports used can be found with the command:
get webfilter fortiguard | grep 'ovrd\|close'

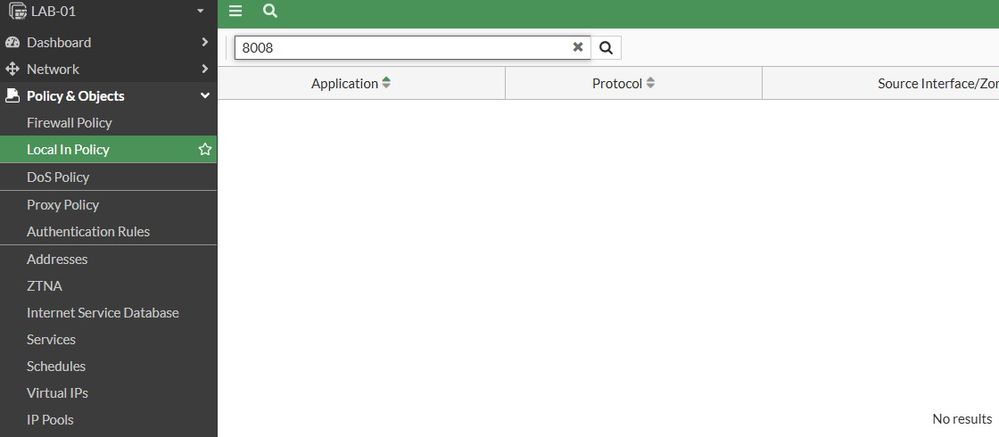

These ports are not found in the Local In policy, in the FortiGate GUI, or CLI:
diagnose sys tcpsock | grep '8008\|8010\|8015\|8020'
The solution, in these cases, is to disable these ports or to change the ports.
Configure at least one port not used by the FortiGate (example: change 8008 by 9008, or 8010 by 9010, or 8020 by 8030).
Example to disable the ports:
config webfilter fortiguard
set close-ports enable
end
Example to change the ports:
config webfilter fortiguard
set ovrd-auth-port-http 8008
set ovrd-auth-port https 8010
set ovrd-auth-port-https-flow 8015
set ovrd-auth-port-warning 8020
end
Change:
config webfilter fortiguard
set ovrd-auth-port-http 9008
set ovrd-auth-port https 9010
set ovrd-auth-port-https-flow 9015
set ovrd-auth-port-warning 9020
end
