Troubleshooting Tip: Numerous occurrences of high CPU usage due to many IPsec tunnels using only one vCPU in VM

[Oscar_Wee]

Description	This article describes how to reduce occurrences of high CPU usage due to many IPsec tunnels using only one vCPU.
Scope	FortiGate-VM.

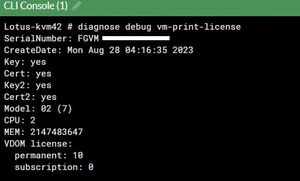

Solution	FortiOS has an interface to CPU core mapping meaning a specific tunnel will be handled by an individual CPU core. An uneven usage of tunnels can therefore cause an uneven spread of CPU usage. To reduce load on a single vCPU distribute load to multiple vCPUs (if available on the model): Check via GUI on the dashboard to make sure that the license provides for two or more vCPUs. Check by executing this command in the firewall CLI: Enter the following command in the CLI to distribute decryption tasks set ipsec-soft-dec-async enable Since 7.0.8, FortiOS supports not only the spread of decryption tasks, but also to redistribute encrypted or decrypted packets across multiple CPU cores. To distribute encrypted packets: config system global     set ipsec-round-robin {enable | disable} end To distribute decrypted packets: config vpn ipsec phase1-interface     edit <name>         set packet-redistribution {enable | disable}     next end Verify that the load is distributed on the two vCPUs. diagnose vpn ipsec cpu Example output:  CPU enc dec-in dec dec-out 0 98 98 91 91    First vCPU 1 0 0 7 7   Second vCPU
