Troubleshooting Tip: L2TP in IPsec connectivity issues

[ppatel]

Description
This article describes possible issues when trying to establish L2TP in IPsec with Windows VPN client.

When ike debug is running while trying to connect and Windows VPN client sends a request to delete IPsec SA and ISAKMP SA, there are 3 possible causes.

# Diag deb res
# Diag deb app ike -1
# Diag deb en
……
ike 0: comes 10.109.20.8:500->10.109.17.18:500,ifindex=44....
ike 0: IKEv1 exchange=Informational id=0bff1eef8377cfc7/89fa3fd20f302705:bd169de3 len=76
ike 0: in 0BFF1EEF8377CFC789FA3FD20F30270508100501BD169DE30000004CF088093033BB59FC176A7AA54D4905EA1721DE822191D71538384A368B2EC28AB181D9481591DA1AD4FF002B07FBFC48
ike 0:L2TP_0:0: dec 0BFF1EEF8377CFC789FA3FD20F30270508100501BD169DE30000004C0C0000189E219D6874BF26E2C12DE4528A20E7FC4FDD7041000000100000000103040001B08931860000000000000000
ike 0:L2TP_0:0: recv IPsec SA delete, spi count 1
ike 0:L2TP_0: deleting IPsec SA with SPI b0893186
ike 0:L2TP_0:L2TP-p2: deleted IPsec SA with SPI b0893186, SA count: 0
ike 0:L2TP_0:0: del route 10.109.20.8/255.255.255.255 oif L2TP_0(51) metric 15 priority 0
ike 0:L2TP_0: sending SNMP tunnel DOWN trap for L2TP-p2
ike 0:L2TP_0:L2TP-p2: delete
ike 0: comes 10.109.20.8:500->10.109.17.18:500,ifindex=44....
ike 0: IKEv1 exchange=Informational id=0bff1eef8377cfc7/89fa3fd20f302705:ff7eeb85 len=84
ike 0: in 0BFF1EEF8377CFC789FA3FD20F30270508100501FF7EEB8500000054119E5FB03F125032AB31EB8634042BB841775170B47EFAC547A2307D538EA4A3B64CAD7359271F396E82245CC0CE78D370C66A0E778FED66
ike 0:L2TP_0:0: dec 0BFF1EEF8377CFC789FA3FD20F30270508100501FF7EEB85000000540C0000189794A5DA2B604D6F53536810F0CAF564F0CB0FE80000001C00000001011000010BFF1EEF8377CFC789FA3FD20F30270500000000
ike 0:L2TP_0:0: recv ISAKMP SA delete 0bff1eef8377cfc7/89fa3fd20f302705
ike 0:L2TP_0: deleting
ike 0:L2TP_0: flushing
ike 0:L2TP_0: sending SNMP tunnel DOWN trap
ike 0:L2TP_0: flushed
ike 0:L2TP_0: delete dynamic
ike 0:L2TP_0: deleted

Solution
1) L2TP does not support CHAP or MSCHAP, as a result it is necessary to only enable PAP in VPN properties:

2) Windows registry missing:
Select 'Start' and type regedit, then navigate to:

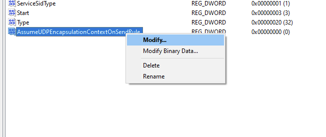

HKEY_LOCAL_MACHINE -> SYSTEM -> CurrentControlSet -> Services -> PolicyAgent, find 'AssumeUDPEncapsulationContextOnSendRule', select it, and set its value to 2.

If it does not  exist, create new DWORD (32-bit) and name it exactly like this (with caps): 'AssumeUDPEncapsulationContextOnSendRule' then set it to 2 (after creation it is set to 0).

After this,  reboot the machine.

3) incorrect firewall policy in FortiGate - in case GUI template for Dialup - Windows (Native L2TP/IPsec) was not used:

# config firewall policy
    edit 1
        set name “L2TP access to LAN”
        set srcintf "L2TP"
        set dstintf "Lan"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
    edit 2
        set name “activate L2TP”
        set srcintf "L2TP"
        set dstintf "Internet"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "L2TP"
        set nat enable
    next

Note.

if none of the provided solutions worked, collect ike debug and open a support ticket with Fortinet TAC support at https://support.fortinet.com
