Description
This article describes how to resolve issues related to the errors 'peer has not completed Configuration Method' and 'debug error mode-cfg not completed'. FortiGate is configured with dial-up IPsec with mode-cfg enabled.
Scope
FortiGate.
Solution
Network Topology:
FortiGate (dial-up IPsec Server) -> Internet -> Third Party VPN (dial-up IPsec Client).
VPN Configuration on FortiGate:
config vpn ipsec phase1-interface
edit "Dialup_VPN"
set type dynamic
set interface "port1"
set ike-version 2
set peertype any
set net-device disable
set mode-cfg enable
next
end
IKE Debug Output: Troubleshooting Tip: Troubleshooting IPsec Site-to-Site Tunnel Connectivity
diagnose debug console timestamp enable
diagnose vpn ike log-filter dst-addr4 <Remote Gateway IP> <----- Change <Remote Gateway IP>.
diagnose debug application ike -1
diagnose debug enable
For v7.4.0 and above, there is a slight change in the command as below:
diagnose debug console timestamp enable
diagnose vpn ike log filter rem-addr4 <Remote Gateway IP> <----- Change <Remote Gateway IP>.
diagnose debug application ike -1
diagnose debug enable
ike 0:Dialup_VPN:4362612: responder received AUTH msg
ike 0:Dialup_VPN:4362612: processing notify type INITIAL_CONTACT
ike 0:Dialup_VPN:4362612: processing notify type EAP_ONLY_AUTHENTICATION
ike 0:Dialup_VPN:4362612: processing notify type MESSAGE_ID_SYNC_SUPPORTED
ike 0:Dialup_VPN:4362612: peer identifier IPV4_ADDR 10.0.0.1
ike 0:Dialup_VPN:4362612: re-validate gw ID
ike 0:Dialup_VPN:4362612: gw validation OK
ike 0:Dialup_VPN:4362612: auth verify done
ike 0:Dialup_VPN:4362612: responder AUTH continuation
ike 0:Dialup_VPN:4362612: authentication succeeded
ike 0:Dialup_VPN:4362612: responder creating new child
ike 0:Dialup_VPN:4362612:1391: peer proposal:
ike 0:Dialup_VPN:4362612:1391: TSi_0 0:192.168.1.0-192.168.1.255:0
ike 0:Dialup_VPN:4362612:1391: TSr_0 0:0.0.0.0-255.255.255.255:0
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: comparing selectors
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: matched by rfc-rule-2
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: phase2 matched by subset
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: accepted proposal:
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: TSi_0 0:192.168.1.0-192.168.1.255:0
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: TSr_0 0:0.0.0.0-255.255.255.255:0
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: dialup
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: incoming child SA proposal:
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: proposal id = 1:
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: protocol = ESP:
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: encapsulation = TUNNEL
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: type=ENCR, val=AES_CBC (key_len = 256)
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: type=INTEGR, val=SHA384
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: type=ESN, val=NO
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: PFS is disabled
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: matched proposal id 1
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: proposal id = 1:
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: protocol = ESP:
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: encapsulation = TUNNEL
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: type=ENCR, val=AES_CBC (key_len = 256)
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: type=INTEGR, val=SHA384
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: type=ESN, val=NO
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: PFS is disabled
ike 0:Dialup_VPN:4362612:Dialup_VPN _2:1391: lifetime=43200
ike 0:Dialup_VPN:4362612: responder preparing AUTH msg
ike 0:Dialup_VPN:4362612: remote port change 30637 -> 30655
ike 0:Dialup_VPN:4362612: peer has not completed Configuration Method
ike 0:Dialup_VPN:4362612: error mode-cfg not completed

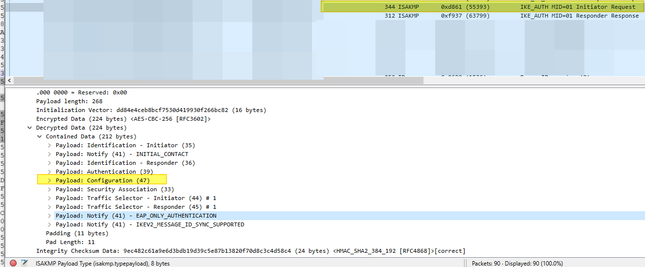

Decrypted IKEv2 Packet Capture: Configuration Payload is not sent from the Client: Technical Tip: How to decrypt IPSec Phase-2 (ISAKMP) packets IKEv2.
FortiGate is configured with 'mode-cfg enable', it will expect a Configuration Payload. Negotiation will fail if not found.
Ensure that the client will send the Configuration Payload. Check with the third-party VPN vendor. The Configuration payload facilitates the transfer of configuration details between IKEv2 peers.
Generally, a remote IKEv2 peer begins the exchange by requesting an IP address within the gateway's protected network. In turn, the FortiGate provides a local address for the peer to use temporarily.
Decrypted IKEv2 Packet Capture when the client sent the Configuration Payload.
Related article:
Troubleshooting Tip: Troubleshooting IPsec Site-to-Site Tunnel Connectivity
