Description This article describes how to resolve a scenario where FortiGate is not showing the IPS license version in the GUI even if it has a valid license.
Scope FortiGate.
Solution

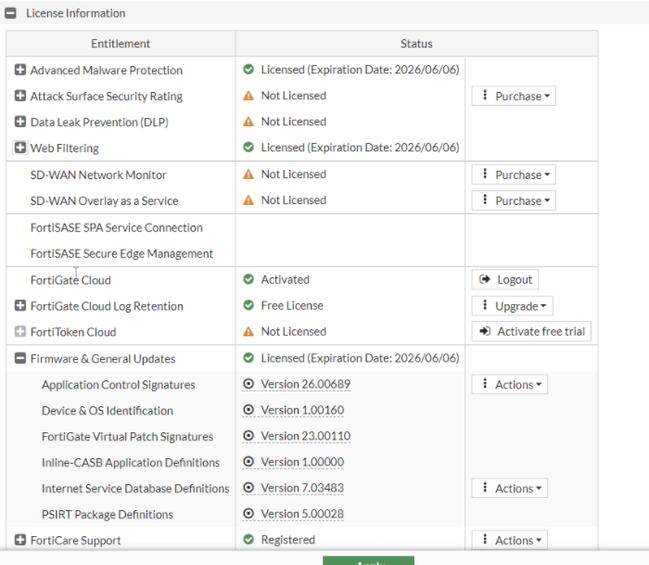

Under system -> FortiGuard -> License information, in the columns, intrusion prevention license information is not visible:



MicrosoftTeams-image (22).png



The intrusion prevention license and related information will be visible if IPS is enabled in the firewalls.

To enable the IPS feature, select System (1) -> Feature Visibility (2) and enable Intrusion Prevention (3), then Apply. As shown below, the IPS feature was disabled:



IPS disabled.png

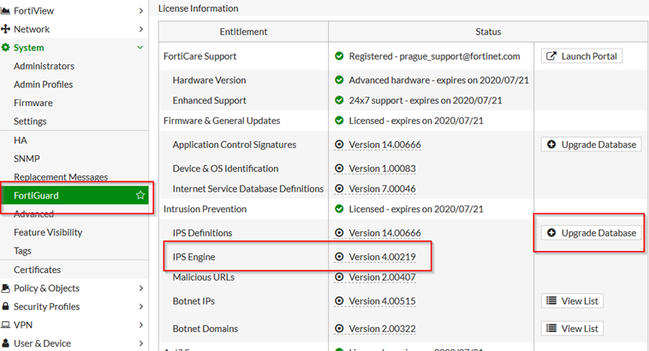

After enabling IPS it shows license information in the table.






To troubleshoot IPS engine-related issues, refer to the following KB articles:

Troubleshooting Tip: Collecting IPS engine related debugs.

Troubleshooting Tip: IPS engine new debug commands.

Technical Tip: How to manually upgrade the IPS Engine.
