| Description |
This article explains how to resolve the issue with the SD-WAN rule that utilizes a 'dynamic destination ' but not functioning because of no destination error. When this issue happens, the output of 'diagnose system sdwan service xxx', will return the rule disabled due to 'no destination'. |
| Scope | FortiGate. |
| Solution |
SD-WAN rules are technically a policy route, that expects certain parameters to be provided for it to function; among those parameters is the destination address (the network to have the policy route). There are times or environments where using a static destination is either not efficient or it’s just not possible, this is where using a dynamic destination for the SD-WAN rule shines.
SD-WAN rule can use BGP learn routes to feed the destination portion of the rule, dynamically. The example in this article showed the same set of routes/prefixes learned over two BGP paths (VPN-1 and VPN-2), SD-WAN is then configured (with dynamic destination provided by BGP) to choose which path to route traffic over based on performance SLA. When the primary tunnel meets the SLA, SD-WAN routes traffic over VPN-1. However, when the primary tunnel failed SLA, SD-WAN failed to route traffic over VPN-2, and during troubleshooting, the SD-WAN rule showed that service-disabled is caused by no destination.

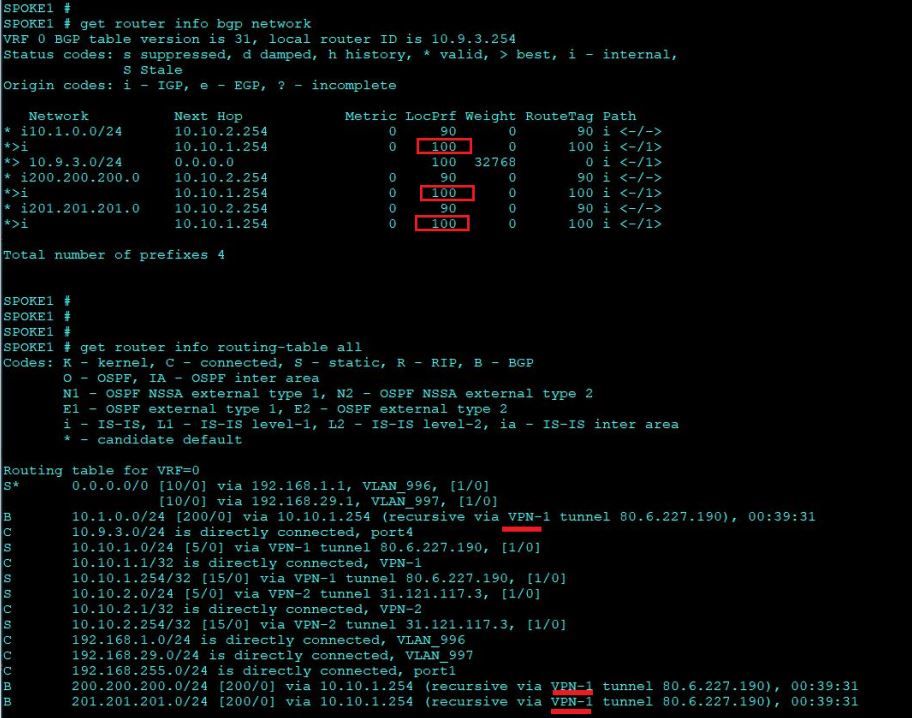

The reason why BGP did not supply route/prefix to SD-WAN rule 200 (in this example) was that local preference was configured on the ROUTE-MAP attached to the BGP neighbor in the inward direction. This made BGP set a local preference of 100 for routes received over VPN-1 and a local preference of 90 for routes received over VPN-2, and it eventually installed only the routes/prefixes over VPN_1 in the routing table.
Note that the BGP peering is still up since VPN-1 is not down, it only failed SLA (a condition called brown out), and as such BGP still installed routes learned over VPN-1 as the best (due to higher local pref). Therefore, there is no installed BGP route to pass to SD-WAN rule 200, since only routes with route-tag 90 can be passed to SD-WAN rule 200, and the ones installed in the routing table are of route-tag 100.

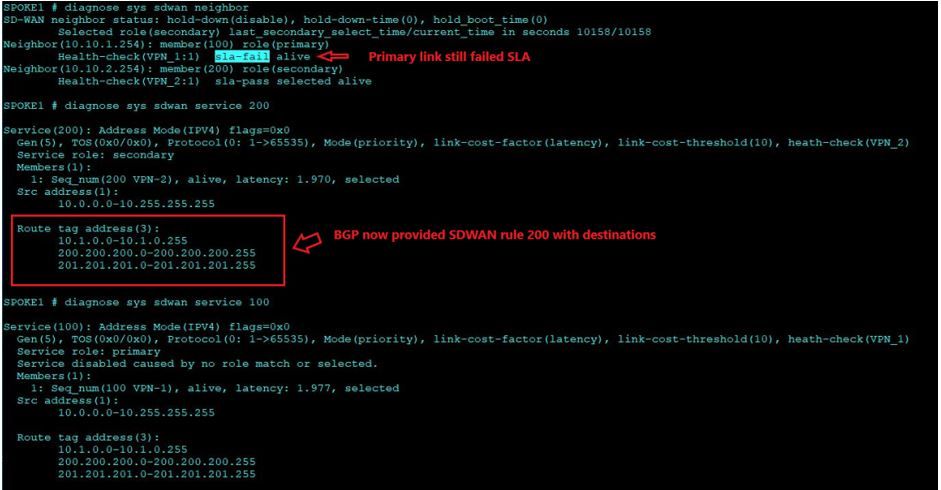

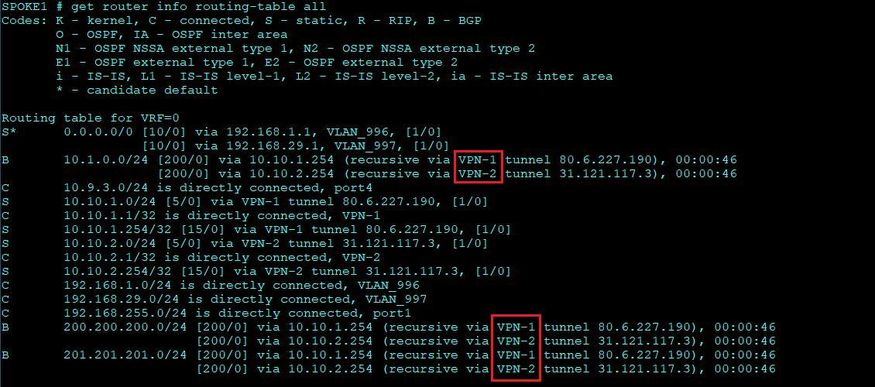

To fix this issue, configure either equal local preference in the route-map attached in the inward direction or just unset the route-map (default), so BGP routes will be installed over both links or paths, as shown below. The secondary link will start working when or whenever the primary link fails SLA.
|
