Troubleshooting Tip: Full tunnel and split tunnel endpoint route comparison

[jera]

Description	This article describes how the route should appear on a Windows PC when using a full tunnel or split tunnel for SSL VPN or IPsec connection.
Scope	Windows PC, FortiClient v7.2.4.

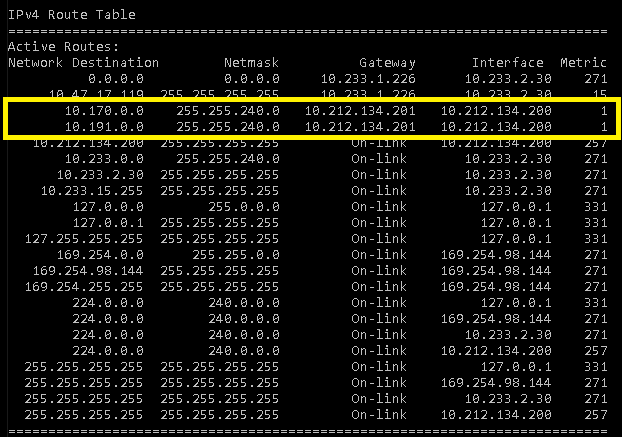

Solution	To verify the route on the client machine, run the command 'route print' in the command line if the client is a Windows device. SSL VPN or IPsec full tunnel: When remote users are connected to the tunnel, both corporate network and internet network traffic will be forwarded through the tunnel.   A default route pointing to the tunnel interface will be installed on the Windows route table with a Metric of 1.  The above route table is part of the output of 'route print' from the CMD line SSL VPN or IPsec split tunnel: When remote users are connected to the tunnel, only the corporate network will be forwarded through the tunnel. Traffic intended for the internet or external sites will be routed to the remote user's personal/home network. A specific route going to the internal subnets will be installed on the Windows route table with a Metric of 1. In the example above, the internal networks are 10.170.0.0/20 and 10.191.0.0/20 Related articles: Technical Tip: Verify SSL VPN Split Tunnel Route on Windows and Linux
