Troubleshooting Tip: Decode Kerberos Authentication Service Request (AP_REQ) on FortiOS with Wireshark

[mriha]

Description	This article describes how to troubleshoot an AP_REQ by decoding it.
Scope	FortiOS.

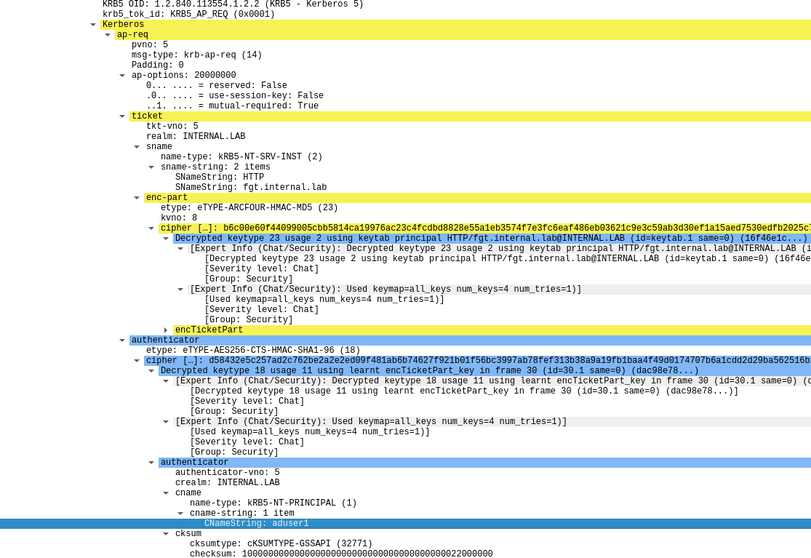

Solution	When Kerberos authentication is configured in an explicit proxy on FortiOS and a client received a Service Ticket from Ticket Granting Server, the client sends the Service ticket (encrypted by Service Secret Key - keytab) along with User Authenticator (encrypted by Service Session Key) to the Service (in this case explicit proxy). The proxy decodes the Service Ticket by a keytab (imported previously from AD, for example via ktpass command). After decryption of the Service Ticket, it is possible to read mostly the following Service Ticket attributes: Username/ID Service Name/ID Timestamp User IP address Lifetime of Service Ticket Service Session Key Service Session Key is then used to decrypt the User Authenticator message, which mostly contains: Username/ID Timestamp The decryption can be done in Wireshark by following the steps below: Get the keytab from a server, which is imported in FortiGate, and save it to a file Run a packet capture and capture traffic between the client and FortiGate Identify the corresponding CONNECT request that does contain the Authentication Service Request (AP_REQ) CONNECT www.fortinet.com:443 HTTP/1.1 User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:145.0) Gecko/20100101 Firefox/145.0 Proxy-Connection: keep-alive Connection: keep-alive Host: www.fortinet.com:443 Proxy-Authorization: Negotiate YIIHMQYGKwYBBQUCoIIHJTCCByGgMDAuBgkqhkiC9xIBAgIGCSqGSIb3EgECAgYKKwYBBAGCN wICHgYKKwYBBAGCNwICCqKCBusEg gbnYIIG4wYJKoZIhvcSAQICAQBuggbSMIIGzqADAgEFoQMCAQ6iBwMFACAAAACjggUKYYIFBjCCBQKgAwIBBaEOGwxJTlRFUk5BTC5MQ UKiIzAhoAMCAQKhGjAYGwRIVFRQGxBmZ3QuaW50ZXJuYWwubGFio4IExDCCBMCgAwIBF6EDAgEIooIEsgSCBK62wA5g9ECZAFy7WBTKG ZdqwjxPzb2IKOVaHrNXT34/xur0husDYhyePFmrPTDvGhWu11MO37ICXHPhHIy8hjNDahvmU+8O0VgSFWoBfJbpcgsLAhQrI8WD1xZfz OPgv74CYZ3Vohj4/4cCLUvrLpJPXWfDBn6kNrmtnDg8hsEjLLAYmjTTchJRx0G+wNPBZ5w/CE/A6A3H7ui8fHlTLVdf4lCmTU2uXjXU7 J9xW/JJaxwJeD+BthnvpizOv+p0WfyyKuZp7jivBewa9Z1CRnj8Dak1jW+a+wLsOXs33myPtI6Mlk6pLw2lr4QGyKnoQENcGRTZPiK/s mcYrO2kmkRS9yLu22iZ2RyZ/ozrVV/90NmlVxRz4oD4+GAiTVTbanYH6fSZOhwvSM10MlA4sQUWcRAF5PWirzbfwzPf8NuJH9fz2ckSB ijb4ICo1QKI+USJAHnGHEqzkQDkGMeMhMZLKRMAdnoJKZPEWs763L9bCXzKeXuHQ67bzuEsVL14ri5n01uAJwcaIxoHog57cKzZF0j2C 1izZdLtMGZAq6nlIOdxClSOQmnmOcRZm+OkFqIEAmatDyyg1skvnYHNhHtj/Uh7ieAipHi/5QlTXCYh4HbIyXhGeaP73nkgRHqV605gH gTei0zOj5eHC7+JTo/JR0+azCz1SvWpxsIgYxvAncK06t+qeTRnpjXujlW3xyahkYFqyuwkX189Hub0PnYV0NCRioLK2hWug+lqc/isi 49gbRKUG8r2yUBfECX2dWM9lEwId1q8EGdL03fd0QTP/0KfwwtH6pWaFc/4kut+ufeiRBOPKOMhltscIPJE26mmIJpqSQ7Wto6fg7XG8 BG/lkpCnfj9LQYNLlzigz6GUZ9UtOW/r+279NQ1c5OLbSiU80AVEMK4Bos11CugSBQZS5I9q+IJ1ygmjsNSDAoUvUQCc3JHL89X7PAo8 xyWQI2xOTIAoaZbTr9MsdqQIXtqR4agc+KbFDlf/JlZE3w0YoQfdIhUb9O8GQ3eTa6Ah4Yk0J1ibnVN8Sqs/KhY0L6hTYiL/A4jtLbwz 3CJKsIqYI4wR1I95rvUftAImEpceLXBCTm8kPckg0L31O6kpN1B8EBBP6wxf//hAmI9fO9swwZPvMjmLFPsjRpMkDOJpogCOirZpIvYd th6PqZlSsF2Rbqb+2Q3/adYJBYhUlveB46tnHZz/Q8X8VdgzofQmqEJnmtvEAeAPjDPpuhznbjHjcDTBirT7nFzhWk/xUeeWQWb7QkqU EbmMjSmJWGCbVIB7i8HmWqMirEkCN0ukcln1uolrAdw6EjuvchSIqGLYjwAL/+G/bu5OK1igqhGp1XP5Ipr5p0tEi7TZZlCG76XhvuDOm VhJOm**bleep**8MpSNlT03BUbW9HThqGHvnX7MpPIewm4AEKgtdsDs44HwKlmon XauqXAdTfQLRV31hLbCdFFAXARAdXT8b0nzON4cfrvtPjj5NUb4P0TQTWy5xpcUJZuzNF2h5WdXk2UUJ7A6gHR96NF0D9sm5k3dnytfYT 2wPTuO8Hlzirnp3S8flG0FRsc5YzB5j9vhSYMmE4Xd9on5OqoPIBvATjiJ1/E7jpIIBqTCCAaWgAwIBEqKCAZwEggGY1YQy5cJXrSx2K+ Ki4u0J9IGra3Rif5IbAfVrw5l6t4/vMTs4qaGfsbqk9J0BdHB7ahzdLSm6ViUWsahphbvBiwloXTYm84P9pDJMWpayvkCfcHCbMnqZk/ynb6cTlTmrGFafFVtIh25e+3rgwI8loUH+4DcQjE1PcVnTtJC0B6PV27Ue3KIDqbuQDpSB+CyHVk5wlEXxMXIoLq5JLpE/5Irc+rtj8FD tvLIAErLbx9dDRVnm7zGCHBDUH6oAcK2+bitd6wX2DlgAd5fuLd501MOXAkp6AJj0R7DGFkg/YHXVLcBS4ZA9s9HMJ/rgZUA1VjGxg2/q07Ui2vztXkruDKRgplhF0myWKk6O5qIFy66XqYGI6S4ZF0PWLLQcLcsc7Ho5947+4Iqf/+eqABffGG5nxsNoPpjqzAKtvuP0SQe6SP4Viy/sappZZdOi354scXR1jyKzap7p1+oLz4NnVgRbG6M9OgSvi+hT1bSZVPfQQlgfhPnkun0L2wbWlFDcqMM8vKnVDH1lGixt6wC7D8P7obEh/112 Navigate to Edit -> Preferences -> Protocols -> KRB5; enable 'Try to decrypt Kerberos blobs' and select the keytab file. If applied correctly, the Authentication Service Request is decoded and can be further inspected.
