Description

The article describes, how to add an overlapping subnet on a different interface(s) and resolve routing issues.

Scope

FortiGate.

Solution

To use the same subnet on more than one interface, it is required to enable overlap-subnet

Use the following commands to configure the overlap subnet:

config system settings

set allow-subnet-overlap enable

end

In the above example, the configuration of an alternate WAN port in the same subnet range. This will allow to use of an IP on

same subnet as the existing outgoing WAN.

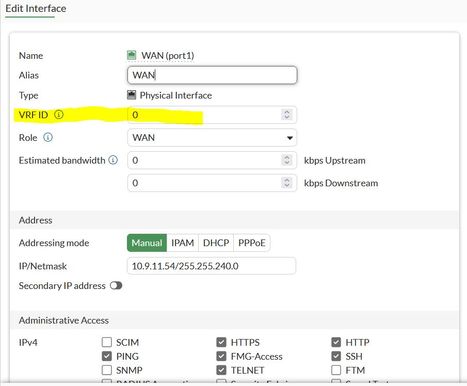

Any interface on the same subnet as the current WAN interface(s) must have a different VRF ID as the other or else there will be routing problems. The WAN(port1) interface is VRF0. Use VRF 1 for the considered networks using the alternate internet interface i.e WAN port-Alternate(port10)

Create the static route using the same gateway IP as WAN (port1):

275
