| Description |
This article describes a scenario where a BGP route comes from an unexpected interface. In this scenario, an IPsec VPN tunnel setup with BGP is used. |
| Scope | FortiGate. |
| Solution |
A BGP route is coming from an unexpected interface. The expected behavior is it should be listed for the tunnel.
For example:
get router info routing-table bgp Routing table for VRF=0 B 192.168.33.0/24 [200/0] via 192.168.194.50 (recursive is directly connected, port3), 00:11:48, [1/0]
To fix this issue run the following commands:
config router bgp config neighbor edit "10.150.70.2" set next-hop-self enable set remote-as 6520 next end

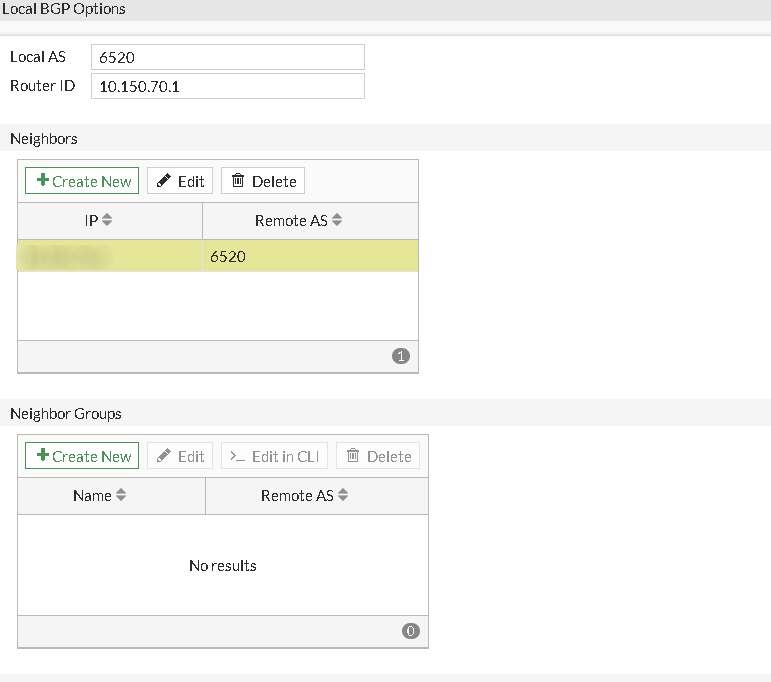

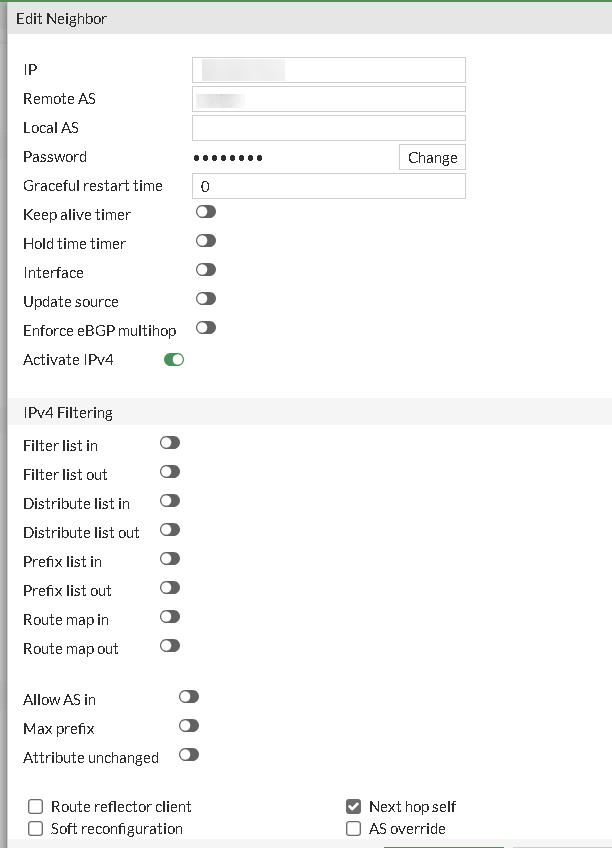

This can also be done on the GUI.
get router info routing-table all Routing table for VRF=0 S* 0.0.0.0/0 [10/0] via 10.9.15.254, port1, [1/0] C 10.9.0.0/20 is directly connected, port1 C 10.150.70.1/32 is directly connected, bgpfun S 10.150.70.2/32 [5/0] via bgpfun tunnel 192.168.194.50, [1/0] B 192.168.33.0/24 [200/0] via 10.150.70.2 (recursive via bgpfun tunnel 192.168.194.50), 1d22h28m, [1/0] |
